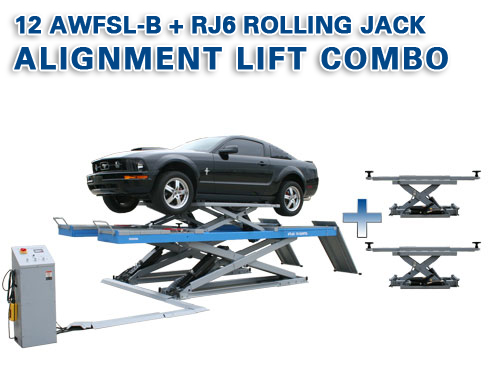

Atlas 12AWFSL:
Heavy Duty Construction and super-balanced lift
for wheel alignment
Can be surfaced mounted or flush mounted
Very precise platform leveling accuracy
Mechanical safety lock with air operated
engagement and release
Emergency manual pump for lowering
Overload valve included
Lowering speed control valve included
Extra Long Slip Plates allow for aligning of
wheelbases from 172" to 86"
6 month motor/electric, 1 year hydraulic, and
2 year structural warranty
Atlas RJ-6:
Air/Hydraulic
6,000 LB. capacity
Heavy duty / commercial grade
Scissor mechanism allows for level lifting
Compact size with a low profile
Adapters included
Safety lock positions
Smooth rolling action
Adapter storage
Powder coated finish
Greg Smith Equipment is pleased to introduce our new Atlas 12AWFSL 12,000 lb alignment scissor lift. This lift has been in production for several years and hundreds of these lifts have been sold throughout the world except for the North America.
Our Asian partner developed this lift in a joint venture with one of the most prestigious Italian lift manufacturers. The combination of the Italian engineering and design coupled with the low cost of the Asian labor has resulted in an alignment lift that is equal to or better than similar big name lift brands costing two and three times as much money.
Atlas and Greg Smith Equipment are the only authorized distribution facilities in North America.
The Atlas alignment lift has a lifting height of over seven feet so that it may be floor mounted or recessed if the customer decides on a flush mount installation. The full frame under the scissor lift provides for maximum stability.
The turntables may be moved into three different positions, allowing the customer to perform both two wheels and four wheels alignment on the shortest and longest of vehicles.
All Atlas alignment scissor lifts can be surface mounted or flush mounted. Each lift comes with approach ramps for the floor mounted application and another set of ramps if the customer decides to flush mount the lift. Check the technical specifications to better understand how the extra high lifting height allows the Atlas 12K alignment scissor to be flush mounted and still offer plenty of room under the runways to properly access the underside of the vehicle.
The extra long 53" long approach ramps make it easy to load low riding vehicles. Once a vehicle is positioned on the Atlas alignment scissor lift, there are two optional jack systems that can lift the vehicle off of the runways to perform wheel service. The air powered hydraulic
Atlas RJ-6 rolling jack has telescoping arms that extend over the runways to access lift points. These jacks have screw out extensions or optional stack on truck adapters.
All Atlas scissor alignment lifts come with a Factory Installed air line kit at no extra charge ($400 value). This air line kit allows the customer to attach a (included) recoil air hose to both rolling jacks without the need of an exposed air hose across the work area floor. The air supply is plumbed into the control panel and the high pressure hose is routed to the inside rear of one platform and the inside front of the other runway. The unique air couplers can be adjusted to regulate the flow of air and can also be turned off without affecting the air supply to the other coupler. The air line kit is hidden and protected so that there is no chance to trip over and air hose. The work area around the lift and between the runways is uncluttered. Another great Atlas above ground lift feature that offers maximum benefits at no cost to the customer.
The other scissor jack system is the wheels free option. This method is a perfect quick lift for a perimeter framed or unibody vehicle. The wheels free jack system is not designed to lift straight framed vehicles, because most straight framed vehicles have narrower lifting points than a unibody vehicle.
The wheels free system can be controlled from either the control panel or from a wired remote. This wired remote allows the customer to actuate the wheels free system from many different positions around the scissor lift.
The telescoping wheels free lift platform can be extended for longer wheels based vehicles. Standard heavy duty rubber supports are used to prevent damage to the lifting surfaces of the vehicle.
The Atlas 12AWFSL 12,000 alignment scissor lift has multiple automatic locking positions to ensure that the lift can be safely used at different heights. The air actuated lock system engages automatically as the lift moves up and is deactivated from the control panel when the lift is ready to be lowered.
The wheels free runway jack system has the same style air actuated lock system. When fully extended, the wheels free system elevates to over 17 inches above the runway.
The Atlas 12AWFSL 12,000 lb. alignment scissor lift is available with either a standard runway or with the built in wheels free system. Welded rails on the inside of the runways are standard on all lifts, allowing the customer the option of incorporating the
Atlas RJ-6 rolling jack system on his Atlas alignment scissor lift.
Quality workmanship, ease of operation, straightforward installation instructions, a durable powder coat finish and the lowest prices in the Industry makes the Atlas 12AWFSL 12,000 alignment scissor lift the perfect choice for the demanding and discriminating show owner.
Electrical Requirement:The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.
Warranty:Greg Smith Equipment offers a 6 month motor/electric, 1 year hydraulic, and 2 year structural warranty on the Atlas 12AWFSL Alignment Scissor Lift. We employ a full staff of Atlas technicians who can assist you (over the phone or in our warehouses) in repairing your Atlas equipment with genuine Atlas parts.
The Atlas RJ-6 rolling jack is the perfect accessory for either the
Atlas 12 ASL, or the
Atlas 12 AWFSL alignment rack. The Atlas RJ-6 (6,000 lbs. capacity) air/hydraulic rolling jack may also be used on competitive scissor lifts and four post lifts that have welded rails on the inside of the runways. Please
click here to determine if the Atlas RJ-6 rolling jack will fit your lift.
The "wheels free" system that is built into many of the Atlas scissor lifts is designed to reach and lift most vehicles. Some customers like to use the rolling jacks to lift either the front or the rear of the vehicle at one time.
Whether you are fan of the Atlas "wheels free" system or enjoy the versatility offered by the rolling jacks, Greg Smith Equipment has the solution for you. Many customers buy the alignment racks with the "wheels free" option and also buy one or two of the Atlas RJ-6 rolling jacks so they are prepared for any vehicle that needs wheel service.
"World-Class" Products:Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.
Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.
IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.
The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.
Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.
