The Atlas 14KOF Garage Pro four post commercial grade open front alignment lift is built for years of dependable service for the busiest of automotive shops. This heavy duty alignment four post lift utilizes top quality aircraft cable actuated by an oversized hydraulic cylinder (located underneath the runway) to provide the smoothest and safest method of lifting both small cars and large trucks. You can trust the ATLAS name for many years of dependable service.

The complete Atlas 14KOF Garage Pro Open Front Alignment Lift weighs 3,000 LB. Please compare the steel thickness and the quality of construction to any other of our competitor's four post lift.

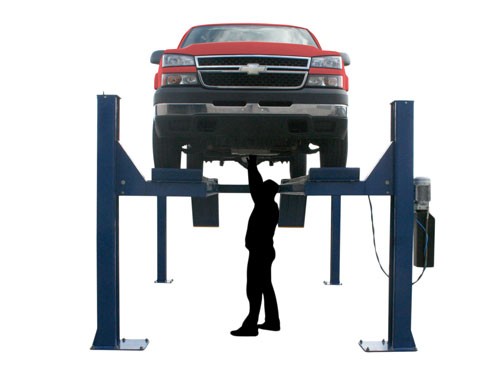

The Atlas 14KOF Garage Pro open front alignment lift has no cross beam in the front of the lift. The front crossbeam has been known to produce a few headaches for alignment technicians that were not paying attention as they walked to their tool boxes.

The Atlas 14KOF Garage Pro open front alignment lift has 2 wheel alignment wheel base capabilities of 178 inches. The Atlas 14KOF Garage Pro has built in slip plates and recessed areas in the runways to allow for turntables. This lift comes with protective steel plates covers that protect the turntables when they are not in use. The single point lock release (air actuated) is conveniently located near the power unit.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

Hydraulic Cable Method vs. The Chain Lifting Method:
Certain competitors offer a four post lift with the "old-style" chain lifting method. The chain lifting method has many disadvantages when compared to the hydraulic cable method found on the Atlas 14KOF Garage Pro four post open front alignment lift.

The exposed hydraulic cylinder found on the chain style four post lifts is located between one of the front columns and the rear column. Certain competitors show a truck lifted on their "old style" chain lift. The truck is positioned so that the customer cannot see the hydraulic cylinder located between the columns. This hydraulic cylinder is responsible for many "door dings". The cylinder (whether located on the driver's side or the passenger's side) makes opening the vehicle doors very difficult.

Air Operated Double Lock:
The AIR OPERATED lock system offers many more safety features than the locking system on other four post lifts.

Wide Fixed Runways:
The Atlas 14KOF Garage Pro has very wide FIXED runways that will accommodate everything from a FORD F450 to a TRIUMPH TR 6. These FIXED runways offer a solid lifting platform for the RJ-7000 or the RJ-6000 rolling jacks that roll down the center of the lift. When the rolling jack is used to lift a vehicle "off" of the four post lift's runways, there is an extreme downward force applied to the inside of both runways. The "old-style" chain 4-post lifts normally have one runway that is "moveable". This "moveable" runway (when pressured with the downward force of a rolling jack) may easily "kick out" and allow the jack to become separated from the inside of the runway. If you own an old style chain four post lift, we would recommend that you "bolt down" the "moveable" runway to avoid an accident. The old style chain lifts have "moveable" runways because the width of their runways is narrower than the runways on an Atlas 14KOF Garage Pro open front four post alignment lift.

Optional Rolling Jacks:
TheRJ-7000 (7,000 LB rolling jacks) or the RJ-6000 (6,000 LB rolling jacks) will allow the operator to perform a variety of wheel services while the vehicle is still on the Atlas 14KOF Garage Pro four post alignment lift. The RJ-7000 and the RJ-6000 rolling jacks are very popular accessories for those garages performing two wheel alignment or four wheel alignment.

"Lock Ladder" Column Design System:
The Atlas 14KOF Garage Pro has the same "lock ladder" column design system as the Atlas Garage Pro 8,000 , Pro Park 8 Plus, and Pro Park 9 Plus. The columns on our 8,000 LB., 9,000 LB., and 14,000 LB. four post lifts incorporate the "lock ladder" system which allows the customer to level the lift runways (both front to back and side to side), on floors that are not quite level. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Double Lock System:
The Atlas 14KOF Garage Pro incorporates the unique DOUBLE LOCK SYSTEM safety system into each of its four columns. The DOUBLE LOCK SYSTEM safety system is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This DOUBLE LOCK safety system is found only on other four post above ground lifts costing hundreds of dollars more than the Atlas 14KOF Garage Pro.

Installation:
The Atlas 14KOF Garage Pro open front alignment above ground lift should be installed on a concrete floor. This concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI strength.

Most of our above ground lift customers install their own car lifts. The average time to install the Atlas 14KOF Garage Pro open front alignment lift is six hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Parts:
Greg Smith Equipment stocks a limited inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.

Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our four post lift warranty please click here.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Atlas 14KOF Garage Pro Open Front Alignment Lift Specifications
Capacity	14,000 LB.
Lifting Height	69 7/8"
Clearance Under Runways	61 1/2"
Overall Width	138"
Overall Length with Approach Ramps	257 1/2"
Overall Length without Approach Ramps	215 1/2"
Length of Approach Ramps	51 1/2"
4-Wheel Alignment Wheelbase	Maximum 162" Minimum 81"
2-Wheel Alignment Wheelbase	Maximum 178" Minimum 81"
Runway Length	199"
Width Between Runway Rails	39 1/8"
Outside Runway to Outside Runway	82 1/2""
Runway Width	19 3/4"
Thickness of Runway	8 3/8"
Width Between Runways	42 5/8"
Height of Columns	Rear: 89 " Front: 99 3/4"
Column Dimension	Rear: 6" X 9 1/2" Front: 7 1/2" X 11"
Base of Column	Rear: 12 1/2" X 14 1/4" Front: 17 3/4" X 21 3/4"
Clearance Between Columns	Rear: 113 7/8" Front: 110 1/8"
Outside Column to Outside Column	Rear: 125 3/4" Front: 125 1/8"
Shipping Weight:	2,990 lbs.

	Size:	Pages:
Atlas Garage Pro 14KOFA Manual	5.6 MB	37	Download
