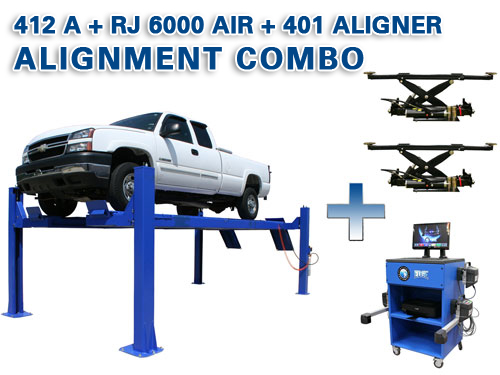

Atlas Pro OF14K Open Front Alignment Lift:
The Atlas Pro OF14K four post commercial grade open front alignment lift is built for years of dependable service for the busiest of automotive shops. This heavy duty alignment four post lift utilizes top quality aircraft cable actuated by an oversized hydraulic cylinder (located underneath the runway) to provide the smoothest and safest method of lifting both small cars and large trucks. You can trust the ATLAS name for many years of dependable service.

The complete Atlas Pro OF14K Open Front Alignment Lift weighs 3,000 LB. and is one of the heaviest and longest wheel based alignment lifts sold in the USA. Please compare the steel thickness and the quality of construction to any other of our competitor's four post lift.

The Atlas Pro OF14K open front alignment lift has no cross beam in the front of the lift. The front crossbeam has been known to produce a few headaches for alignment technicians that were not paying attention as they walked to their tool boxes.

The Atlas Pro OF14K open front alignment lift has 2 wheel alignment wheel base capabilities of 218 inches. The Atlas Pro OF14K has built in slip plates and recessed areas in the runways to allow for turntables.

Hydraulic Cable Method vs. The Chain Lifting Method:
Certain competitors offer a four post lift with the "old-style" chain lifting method. The chain lifting method has many disadvantages when compared to the hydraulic cable method found on the Atlas Pro OF14K four post open front alignment lift.

The exposed hydraulic cylinder found on the chain style four post lifts is located between one of the front columns and the rear column. Certain competitors show a truck lifted on their "old style" chain lift. The truck is positioned so that the customer cannot see the hydraulic cylinder located between the columns. This hydraulic cylinder is responsible for many "door dings". The cylinder (whether located on the driver's side or the passenger's side) makes opening the vehicle doors very difficult.

Air Operated Double Lock:
The AIR OPERATED DOUBLE LOCK designed for the Atlas Pro OF14K open front alignment lift offers many more safety features than the locking system on other four post lifts.

Wide Fixed Runways:
The Atlas Pro OF14K has very wide FIXED runways that will accommodate everything from a FORD F550 to a TRIUMPH TR 6. These FIXED runways offer a solid lifting platform for the RJ-6000 rolling jacks that roll down the center of the lift. When the rolling jack is used to lift a vehicle "off" of the four post lift's runways, there is an extreme downward force applied to the inside of both runways. The "old-style" chain 4-post lifts normally have one runway that is "moveable". This "moveable" runway (when pressured with the downward force of a rolling jack) may easily "kick out" and allow the jack to become separated from the inside of the runway. If you own an old style chain four post lift, we would recommend that you "bolt down" the "moveable" runway to avoid an accident. The old style chain lifts have "moveable" runways because the width of their runways is narrower than the runways on an Atlas Pro OF14K open front four post alignment lift.

"Lock Ladder" Column Design System:
The Atlas Pro OF14K has the same "lock ladder" column design system as the Pro Park 8S, Pro Park 8 Plus, and Pro Park 9 Plus. The columns on our 8,000 LB., 9,000 LB., and 14,000 LB. four post lifts incorporate the "lock ladder" system which allows the customer to level the lift runways (both front to back and side to side), on floors that are not quite level. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Double Lock System:
The Atlas Pro OF14K incorporates the unique DOUBLE LOCK SYSTEM safety system into each of its four oversized columns. The DOUBLE LOCK SYSTEM safety system is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This DOUBLE LOCK safety system is found only on other four post above ground lifts costing hundreds of dollars more than the Atlas Pro OF14K.

Installation:
The Atlas Pro OF14K open front alignment above ground lift should be installed on a concrete floor. This concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI strength.

Most of our above ground lift customers install their own car lifts. The average time to install the Atlas Pro OF14K open front alignment lift is six hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Parts:
Greg Smith Equipment stocks a limited inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.

Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our four post lift warranty please click here.

---

Atlas RJ-6000:

The Atlas RJ-6000 is a heavy duty rolling jack designed to lift and support 6,000 LB. The commercial grade RJ-6000 rolling jack can be used to raise the front or rear portion of a vehicle; allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

The Atlas RJ-6000 has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS that are located over the runways of the four post lift. The Atlas RJ-6000 rolling bridge is equipped with expandable supports which adjust to fit many different brands of four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds.

The Atlas Atlas RJ-6000 comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the Atlas RJ-6000 rolling hydraulic jack to raise most pick up and larger trucks that will sit higher than the average passenger car.

The Atlas RJ-6000 can be equipped with an optional Atlas Deluxe Air/Hydraulic Pump. The air/hydraulic pump would require a supply of compressed air (air compressor) to work properly.

The Atlas RJ-6000 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas RJ-6000 are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

---

Atlas Edge 401 Hybrid Alignment Machine:

Atlas Edge 401 Hybrid - Speed, Accuracy, and Simplicity
at an Even Lower Cost:
The Atlas Edge 401 Hybrid features the speed and accuracy of the more expensive Atlas Bluetooth ® alignment machines in a system that uses cabled front heads and wireless rear heads. The Hybrid sensors are compatible with either the included standard four point wheel clamp that requires runout compensation or the optional 24" non- runout FastClamp system.

The Atlas Edge 401 Hybrid is the perfect choice for the customer that wants the absolute most precise instrumentation in the Industry at a very competitive price. Check the features and prices of the Atlas Edge 401 Hybrid before you purchase a used Hunter ® alignment machine. We know that many of the Hunter ® representatives take trade-ins when they sell newer alignment machines. These older Hunter ® alignment machines are sold at about the same price as a new Atlas Edge 401 Hybrid wheel alignment machine. Why invest your hard earned money in a used alignment machine that incorporates "old technology" and requires a long set-up time. Call us to find out more how easily (and inexpensively) get into the wheel alignment business with brand new equipment.

The Atlas Edge 401 system comes complete with a color printer, 19 inch monitor, and keyboard.

Cut Out The Middleman's Profits. Read More...

Two Vehicle Database Updates Per Year:
After the vehicle is positioned on the lift (this machine is so versatile that an accurate alignment can be performed on the floor), the operator would select the model and year and vehicle from the huge database. (operator may enter their own data). The customer receives two updates per calendar year, so the database is always current.

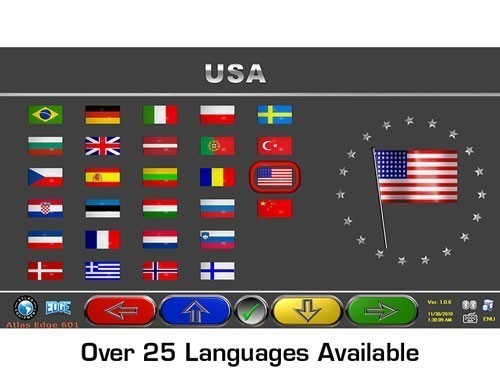

Over 25 Languages:
The database has over 25 languages that may be selected. So if your technician would rather read the information in Spanish, German, Italian, Lithuanian, or dozens of other languages, then the Atlas Edge 401 machine is the perfect choice.

Click here to see the languages available.

Standard Self-Centering 4 Point Clamps:
Includes a set of self-centering 4 point clamps, with removable claws. These clamps will clamp wheels 10"-24" and require runout compensation.

Patented FastClamp System (Optional):
An accurate alignment begins with the wheel clamps mounted correctly to the wheel. If the wheel clamps are not mounted properly, then the accuracy of the sensors is compromised. Precision accuracy is the result of the proper relationship between the reference point, the measuring sensors, and the software data. The patented FastClamp system assures the operator of the most accurate reference possible.

The Fast-Clamp fastens to the wheel by "gripping the tire". There is no need for any type of "roll-back" procedure and zero runout is attained (IMMEDIATELY). Lipless wheels and dual wheel trucks are absolutely "no-problem". The Fast-Clamp system is perfect for rims that are 13" to 24" in size. You get two sets of "tire grabbers" to secure to a wide variety of tire sizes and you receive all the pins needed for special lipped wheels.

The reason the fast clamp is a non runout is that it is so precision made that it induces no artificial runout into the circle. The standard 4-point on most aligner systems when tightened down flexes and creates a large amount of artificial runout that must be compensated for.

NOTE: If you upgrade to the Patented FastClamp System, you will not receive both the Standard 4-Point Clamps and the FastClamp system. You will only receive the receive the Patented FastClamp System.

Hybrid Front Wired/Rear Wireless Sensors:
The front two sensors are connected to the front console with cables. The rear sensors communicate with the front sensors via Infra-red transmission. The operator can begin the alignment program from any sensor head. The control panel on each sensor head eliminates the need to walk to and from the console. The CCD measuring system is absolutely super accurate and the front and rear camber and toe (with thrust) are measured automatically.

The Caster and SAI turning routine requires less than 10 seconds and the complete diagnosis is displayed for both axles on all the sensors and console.

All sensors tell the operator if the angle is within specifications, making the additional cost of a rear remote unnecessary.

The alignment program is so simple that the operator needs only to push four (color-coded) arrow buttons located on each sensor to navigate the entire program. The same four color coded arrow button keys are also located on the console.

These sensors are so durable that breakdowns and down time are not an issue.

Fast And Easy Alignment:
The Atlas Edge 401 is absolutely the fastest and easiest alignment machine to operate. The FastClamp system means that the operator does not need to perform a "roll back" on the vehicle.

Most other alignment machines require a time consuming "roll-back" operation which delays the operator from obtaining the car's measurements as quickly as possible. The Atlas Edge 401 alignment system allows the operator to install the sensors and acquire both axle measurements (including Caster and SAI) in less than 3 minutes.

We do not believe that Hunter ®, Accu-Turn ®, Ranger ®, Bosch ®, Snap-On ® or John Bean ® alignment equipment will allow the operator to record (accurately) these important measurements in such a short period of time.

The CCD camera technology is recognized as the Industry standard and the sophisticated software provides the operator with simple, logical procedures resulting in the fastest format to align a vehicle.

The software help screen has hundreds of animations, images, and detailed drawings that depict the method of adjustment for each vehicle and other important information. There is also a "spoiler" program for those vehicles with low air dams.

Ease of Use:
Many service shops have been hesitant to add alignment service to their list of "services performed". Atlas alignment equipment is the perfect answer for those service centers that have not added an alignment machine to their list of shop equipment.

Many of the BIG BRAND names would have you believe that you must be a graduate from an engineering college to operate an alignment machine. The Atlas Edge 401 is easier to use than downloading songs to your iPod ®. If you know anything about alignments, you will be able to set up and use the Atlas Edge 401 within minutes of opening the boxes. The four button arrow keys make alignments easier to do than changing a 24 inch custom wheel.

Quality and Reliability:
Several BIG BRAND alignment manufacturers try to intimidate or scare customers into believing that if you don't buy their red BIG BRAND alignment machine, then you will never have future service or updates. We smile (loudly) at these ridiculous claims. The price of tire changers and wheel balancers has gone down dramatically over the past 5 years. Why has the price of alignment equipment remained so high? One reason, the alignment machine market is dominated by only one "player" that has kept the price of alignment equipment "artificially" inflated. Most alignment shops do not make their money by strictly doing the alignments. These shops make their money by "hanging parts" and then doing the alignment. Speed and accuracy combined with a small initial investment make the Atlas brand far superior to other machines.

Many service shops are afraid to buy any other brand of alignment machine other than the BIG BRAND machine, because they believe that all the "good alignment techs" have only used the BIG BRAND alignment equipment and will not use a "No-Name" brand. Well, the Atlas brand is made by a manufacturer that has been making alignment instrumentation for the past 38 years.

"F.A.S.T" Finder System:
The Atlas 401 and Atlas 601 are the only aligner systems offering the Front Axle Speed Test "FAST" Finder System. The FAST Finder System allows you to find out within minutes whether a vehicle needs an alignment. You have the ability to mount only the front two sensor heads and obtain a fast printout of the condition of the front steering axle. This can be used for quick alignment checks which will help you sell alignment service and make your shop more money!

Component Loaner Program:
Parts for our Atlas alignment machines are repaired under our Component Loaner Program. This is a tried and true program that has been in place for more than 10 years. The beauty of the Atlas system is that it is cleanly divided into only 5 major components - 4 sensor heads and one PC. We diagnose your problem by phone or internet access. If one of the components is at fault we will send you a loaner component via FedEx. You simply place your component in the same packaging and FedEx automatically returns two days later to retrieve it and return it to us.

This is a faster, more efficient, and less costly method of offering service to our customers. It reduces customer's downtime which means more income. It is a more modern and innovative way of providing service and support.

Software Updates:
Software updates to the Atlas 401 and Atlas 601 machines are FREE. All you need is an internet connection. If you do not have an internet connection, we can also send you a USB Flash Drive which can be used to download updates.

Vehicle Target Data:
The vehicle data base is compiled by the U.S. Company MOTOR. Motor has one major release each year which means an upgrade is available for purchase for a nominal charge (Between $350 and $495) each July. In other words, most 2011 vehicle data will be included in the July 2011 upgrade. The target data starts with vehicles in the early to mid 1960's and continues thru 2011.

Important Facts Regarding our Target Data:

• Originates from a major U.S. auto company (MOTOR, owner of ALLDATA) for vehicles sold in the U.S. – NOT A EUROPEAN DATABASE.
• Over 90,000 vehicles listed in the database.
• Upgrades available each July by internet or by flash drive.
• Alignment data can also be easily entered into the system manually using the keyboard.
• Customer is not obligated to purchase the upgrade each year.
• If the customer skips one year (2011) the 2012 upgrade will include the 2011 upgrade. (N/C)

Parts And Accessories:
Atlas believes that service equipment should be no more complicated (in fact, less complicated) than the electronic system on today's vehicles. If your shop can work on today's cars and trucks, then your shop can easily diagnose and repair any Atlas wheel service equipment. Most shops want to control their own destiny when it comes to "fixing their own stuff". Greg Smith Equipment stocks the parts and accessories to get your shop "up and running" if any of your Atlas wheel service equipment needs to be serviced. We supply the parts (ASAP) and you supply the labor.

This simple concept is why Atlas wheel service equipment is the fastest growing brand of equipment in the world. Why wait for the BIG Brand service tech to visit your store, order the parts, and charge some ridiculously high price for installing simple "plug and play" parts.

This equipment is very sophisticated, but is also very durable and simple to repair, if repairs are ever needed.

Atlas offers a very low "up front" purchase price and supports their products by stocking parts and accessories that can be easily installed by the end-user.

The computer and printers found in the Atlas Edge 401 may be purchased locally. Even the sensor batteries are available locally. Greg Smith Equipment and Atlas Equipment believe that the profit should be made from the sale of the equipment; not from "nickeling and diming" our customers on inflated "proprietary items" that could easily (and cheaply) be bought locally.

Warranty:
Warranty is one year for parts. For six months we will furnish labor to correct the problem. This does not include transportation costs for shipping components back and forth. This also does not include any on site repairs to customer location.

Protect Your Atlas Edge Wheel Aligner With Battery Backup And Surge Protection!

Atlas Pro OF14K Open Front Alignment Lift Specifications
Capacity	14,000 LB.
Lifting Height	71 1/8" (5' 11 1/8")
Clearance Under Runways	63 1/8" (5' 3 1/8")
Overall Width	138 1/2" (11' 6 1/2")
Overall Length with Approach Ramps	290" (24' 2")
Overall Length without Approach Ramps	254 1/4" (21' 2 1/4")
Length of Approach Ramps	41 1/2" (3' 5 1/2")
4-Wheel Alignment Wheelbase	Maximum 155" Minimum 81"
2-Wheel Alignment Wheelbase	Maximum 218" Minimum 81"
Runway Length	243" (20' 3")
Width Between Runway Rails	38 7/8" (3' 2 7/8")
Outside Runway to Outside Runway	83 1/4"" (6' 11 1/4")
Runway Width	20 1/4" (1' 8 1/4")
Thickness of Runway	8 1/4"
Width Between Runways	42 5/8" (3' 6 5/8")
Height of Columns	Rear: 85 3/4 " (7' 1 3/4") Front: 91" (7' 7")
Column Dimension	Rear: 7 1/4" X 7 1/2" Front: 7 3/4" X 8 3/4"
Base of Column	Rear: 11 7/8" X 11 7/8" Front: 18" X 18 1/2"
Clearance Between Columns	Rear: 118" " (9' 10") Front: 117" (9' 9")
Outside Column to Outside Column	Rear: 130 3/8" " (10' 10 3/8") Front: 132 3/8" (11' 3/8")
Shipping Weight:	2,990 lbs.

---

Atlas RJ-6000
Maximum Width	55 ¾"
Minimum Width	35"
Distance Between Runway Capability	32"-52"
First Locking Position	7"
Second Locking Position	10 1/2"
Maximum Lifting Height (With Adapters)	20 1/4"
Adapters	3" and 1 ½"
Maximum Capacity	6,000 LB.

Product:	Size:	Pages:	Manual:
Atlas Pro OF14K Manual	840 KB	21	Download
