Atlas 9370C Deluxe Truck Medium Duty Brake Lathe
Product Code ATBL9370C

Greg Smith Equipment Sales is pleased to introduce the Atlas 9370C Deluxe combination disc/drum brake lathe as a part of our ever expanding product line.

$3,795.00

Add to Cart

Description
Specifications
Downloads
Shipping Info
Articles

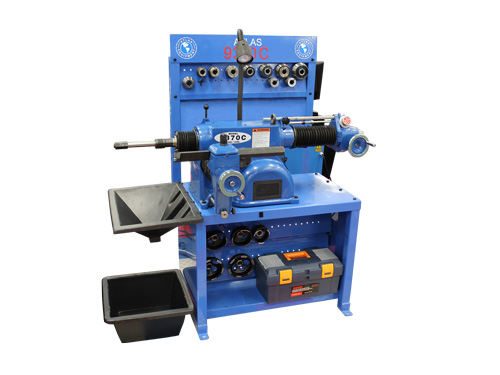

Greg Smith Equipment Sales is pleased to introduce the Atlas 9370C Deluxe Truck medium duty combination disc/drum brake lathe as a part of our ever expanding product line. The Atlas 9370C comes complete with a FREE bench, and FREE standard and deluxe tool packages. This lathe has features comparable to the Accu-Turn® 8989 truck brake lathes.

The Accu-Turn® lathes do NOT include the same adapters, shafts, and miscellaneous tools that are included (FOR FREE) with the Atlas 9370C Deluxe Car/Truck brake lathe.

The Atlas 9370C combination disc/drum brake lathe is the best value for a heavy duty commercial brake lathe. The Atlas 9370C brake lathe offers the same features as those brake lathes costing thousands more dollars. The Atlas name is synonymous with high quality automotive shop equipment sold at unbelievably low pricing.

Greg Smith Equipment Sales stocks more automotive after market equipment than any other warehouse in the USA. We offer the most competitive prices on the best products. If you are opening a new automotive service center or just updating or adding equipment to your established service center; you will get your best deal on all your equipment needs from Greg Smith Equipment.

Please call us to find out more about the Atlas 9370C Brake Lathe from Greg Smith Equipment Sales.

Concerned with after sale service? Click here.

Atlas 9370C Brake Lathe Specifications
Overall Height - Mounted On Bench:	59" / 1499 mm.
Floor Space Needed - Width:	51" / 1295 mm.
Floor Space Needed - Depth:	37-1/2" / 952 mm.
Spindle To Floor - Mounted On Bench:	39.375" / 1000 mm.
Electrical Requirements Standard:	115 VAC, 60 Hz, 20 Amps
Spindle Motor:	1 HP, 115 VAC, 60 Hz.
Spindle Travel:	9.875" / 251 mm.
Spindle Speed - Inner Groove:	70 RPM
Spindle Speed - Middle Groove:	88 RPM
Spindle Speed - Outer Grove:	118 RPM
Spindle Feed Speed Infinitely Variable - Min:	0.002 Inch Per Revolution (0.05 Mm/Rev)
Spindle Feed Speed Infinitely Variable - Max:	0.020 Inch Per Revolution (0.50 Mm/Rev)
Cross Travel:	3.94" / 100 mm.
Cross Feed Speed - Manual Fine:	0.002 Inch Per Revolution (0.05 Mm/Rev)
Cross Feed Speed - Manual Course:	0.010 Inch Per Revolution (0.0250 Mm/Rev)
Maximum Brake Rotor Diameter:	19" / 483 mm.*
Maximum Brake Rotor Thickness:	4" / 102 mm.
Brake Drum Diameter - Min:	6" / 152 mm.
Brake Drum Diameter - Max:	28" / 711 mm.
Maximum Drum Depth:	6-7/8" / 175 mm.
Maximum Load: 1" Arbor	100 Lbs .
1.875" Arbor	200 Lbs .
Shipping Weight - With Bench & Standard Tools	720 Lbs .

*With Cross Feed Extension
