The “PLUS” features for our commercial grade two stage air compressors include a low oil monitor, automatic tank drain, and air cooled aftercooler. These three features help to extend the life of your Atlas electric air compressor while also delivering “better air”.

Automatic Tank Drain: Although you promise yourself that you will drain your compressor once a week; you will not. The automatic tank drain removes the excess water from your air tank many times every day.
Key word: AUTOMATICALLY!

Low Oil Monitor: Do you wait for your oil light to glow on the dash of your automobile before you add or change oil? Did you promise yourself that you would check your air compressor’s oil level every month? The low oil monitor automatically “shuts down” your air compressor in the event that the oil in the compressor pump falls below a safe level.
Key word: AUTOMATICALLY!

Air Cooled AfterCooler: The after cooler reduces the temperature of the pressurized air before it enters the air tank of your Atlas Air Force air compressor. When the temperature of the compressed air is lowered, there is less moisture in the tank and in the air being used from the tank. Moisture is the enemy of all air powered tools. The Air Cooled AfterCooler and the Automatic Tank Drain help to solve this problem.
Key word: AUTOMATICALLY!

The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas Air Force shop compressor is built to the same exacting standards as the entire line of Atlas professional grade automotive equipment sold at Greg Smith Equipment Sales.

The Atlas Air Force air compressors offer a much better value than those compressors sold at the BIG BOX hardware stores or Wholesale Clubs. Greg Smith Equipment stocks the parts and accessories to keep your Atlas air compressor in peak condition for many years. Greg Smith Equipment has a knowledgeable sales staff and a complete service department to assist you with your air compressor buying decision. Atlas Air Force vertical compressors feature motors, pressure switches, and magnetic starters that are purchased from USA owned corporations.

The cast iron single stage and two stage air compressor pumps can be rebuilt with parts stocked at Greg Smith Equipment Sales. These are NOT “throw-away” air compressors. These are commercial grade professional quiet air compressors. They do not “scream” like the Direct Drive oil-less air compressors sold at hardware stores and discount warehouses.

Our Atlas Air Force air compressors are assembled in the Midwest by a factory that has been manufacturing and assembling quality air compressors for over thirty years. You can buy with confidence, when you select the Atlas brand.

For information on our Atlas Air Force warranty please click here.

To view the operator's manual click here.

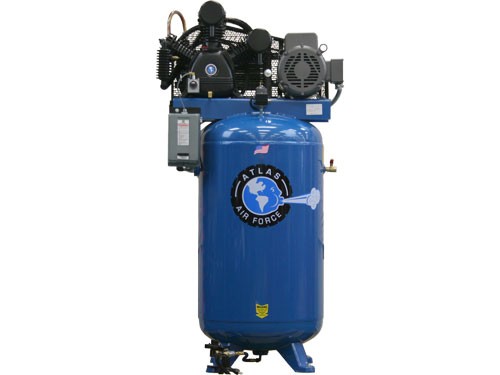

Atlas Air Force AF9 Plus/17 Specifications
Motor Running	7.5 Horsepower
Delivered-CFM 100PSI	24.8
Delivered-CFM 175PSI	22.8
Pressure Settings	145 lb. - 175 lb.
Tank Capacity	80 Gal.
Air Outlet Size	½" NPT
Overall Dimensions	L 36 1/2" x W 24" x H 71"
Shipping Weight	627 LBS.
Motor Voltage	230VAC 1PH 60Hz 34-32AMPS
Auto Tank Drain Voltage	110v
Compressor Pump	TK50 3 Cylinder 2 Stage
