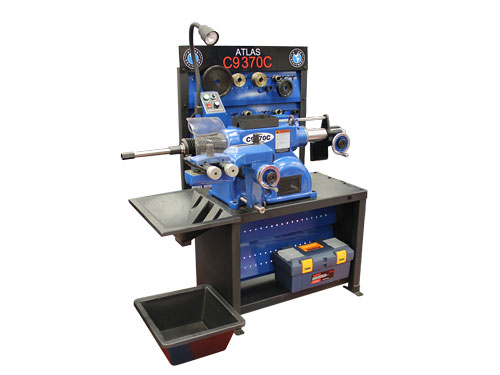

Atlas C9370C Variable Speed Feed Rate Deluxe Truck Medium Duty Brake Lathe
Product Code ATBLC9370C

Greg Smith Equipment Sales is pleased to introduce the Atlas C9370C Deluxe combination disc/drum brake lathe as a part of our ever expanding product line.

$3,995.00

Add to Cart

Description
Specifications
Downloads
Shipping Info
Articles

Variable speed feed rate

Combination disc/drum capability

Includes bench, 1" arbor, & deluxe adapter set

Precision electric DC servo motors

Greg Smith Equipment Sales is pleased to introduce the Atlas C9370C Deluxe Truck medium duty combination disc/drum brake lathe as a part of our ever expanding product line. The Atlas C9370C comes complete with a FREE bench, and FREE Quick Chuck Tool Package. This lathe has features comparable to the Accu-Turn® 8989 truck brake lathes.

The Accu-Turn® lathes do NOT include the same adapters and miscellaneous tools that are included (FOR FREE) with the Atlas C9370C Deluxe Car/Truck brake lathe.

The Atlas C9370C combination disc/drum brake lathe is the best value for a heavy duty commercial brake lathe. The Atlas C9370C brake lathe offers the same features as those brake lathes costing thousands more dollars. The Atlas name is synonymous with high quality automotive shop equipment sold at unbelievably low pricing.

Greg Smith Equipment Sales stocks more automotive after market equipment than any other warehouse in the USA. We offer the most competitive prices on the best products. If you are opening a new automotive service center or just updating or adding equipment to your established service center; you will get your best deal on all your equipment needs from Greg Smith Equipment.

Please call us to find out more about the Atlas C9370C Brake Lathe from Greg Smith Equipment Sales.

Concerned with after sale service? Click here.

Atlas C9370C Brake Lathe Specifications
Overall Height - Mounted On Bench:	59"
Floor Space Needed - Length:	48"
Floor Space Needed - Width:	35 1/2"
Spindle To Floor - Mounted On Bench:	39 1/4"
Standard Electrical Requirements:	110 VAC, 60 Hz, 12A, 1 PH
Main Motor:	1 HP
Spindle Travel:	9.875" / 251 mm.
Spindle Speed - Inner Groove:	70 RPM
Spindle Speed - Middle Groove:	88 RPM
Spindle Speed - Outer Grove:	118 RPM
Spindle Feed Speed:	Infinitely Variable 0-0.023" /r
Cross Travel:	5.9 inch
Cross Feed Speed:	Infinitely Variable 0-0.015" /r
Maximum Brake Rotor Diameter:	7-18" *
Maximum Brake Rotor Thickness:	4"
Brake Drum Diameter:	6-28"
Maximum Drum Depth:	9 7/8"
Maximum Load (1" Arbor):	100 LBS.
Shipping Weight - With Bench & Standard Tools	720 LBS.

*Cross feed extension increases the maximum rotor diameter to 22"
