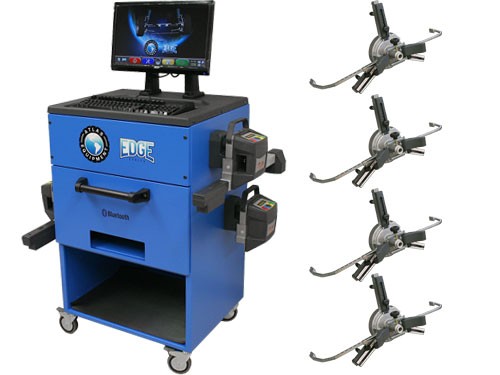

Atlas Edge 601 BlueTooth ® - Speed, Accuracy, and Cutting-Edge Technology in an Affordable Alignment System:
This revolutionary alignment system features the latest aligner technology available from one of Europe's premier manufacturers. This system combines blazing speed, precision accuracy, and reliable Bluetooth ® wireless communication all at a very affordable cost.

The Atlas Edge 601 has deluxe cabinetry, a color printer, 19 inch color monitor, and keyboard.

Cut Out The Middleman's Profits. Read More...

A Letter To Potential Atlas Edge 601 Customers...

Two Vehicle Database Updates Available Per Year:
After the vehicle is positioned on the lift (this machine is so versatile that an accurate alignment can be performed on the floor), the operator would select the model and year and vehicle from the huge database. (operator may enter their own data). Two updates per calendar year are available (call for pricing), so the database is always current.

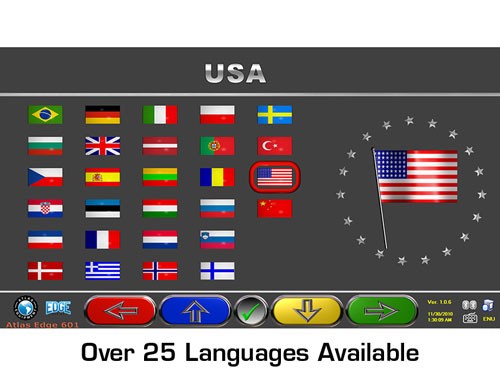

Over 25 Languages:
The database has over 25 languages that may be selected. So if your technician would rather read the information in Spanish, German, Italian, Lithuanian, or dozens of other languages, then the Atlas Edge 601 machine is the perfect choice.

Click here to see the languages.

Patented FastClamp System:
An accurate alignment begins with the wheel clamps mounted correctly to the wheel. If the wheel clamps are not mounted properly, then the accuracy of the sensors is compromised. Precision accuracy is the result of the proper relationship between the reference point, the measuring sensors, and the software data. The patented FastClamp system assures the operator of the most accurate reference possible.

The Fast-Clamp fastens to the wheel by "gripping the tire". There is no need for any type of "roll-back" procedure and zero runout is attained (IMMEDIATELY). Lipless wheels and dual wheel trucks are absolutely "no-problem". The Fast-Clamp system is perfect for rims that are 13" to 24" in size. You get two sets of "tire grabbers" to secure to a wide variety of tire sizes and you receive all the pins needed for special lipped wheels.

The reason the fast clamp is a non runout is that it is so precision made that it induces no artificial runout into the circle. The standard 4-point on most aligner systems when tightened down flexes and creates a large amount of artificial runout that must be compensated for.

Completely Wireless Bluetooth® Sensors:
Next, attach the completely wireless eight (8) pound sensors (communicate with each other via Bluetooth ® communication) to the Fast-Clamp system. This communication is so stable that back up cables are not needed. The operator can begin the alignment program from any sensor head. The control panel on each sensor head eliminates the need to walk to and from the console. The CCD measuring system is absolutely super accurate and the front and rear camber and toe (with thrust) are measured automatically.

The Caster and SAI turning routine requires less than 10 seconds and the complete diagnosis is displayed for both axles on all the sensors and console.

All sensors tell the operator if the angle is within specifications, making the additional cost of a rear remote unnecessary.

The alignment program is so simple that the operator needs only to push four (color-coded) arrow buttons located on each sensor to navigate the entire program. The same four color coded arrow button keys are also located on the console.

These sensors are so durable that breakdowns and down time are not an issue.

Fast And Easy Alignment:
The Atlas Edge 601 is absolutely the fastest and easiest alignment machine to operate. The FastClamp system means that the operator does not need to perform a "roll back" on the vehicle.

Most other alignment machines require a time consuming "roll-back" operation which delays the operator from obtaining the car's measurements as quickly as possible. The Atlas Edge 601 alignment system allows the operator to install the sensors and acquire both axle measurements (including Caster and SAI) in less than 3 minutes.

We do not believe that Hunter ®, Accu-Turn ®, Ranger ®, Bosch ®, Snap-On ® or John Bean ® alignment equipment will allow the operator to record (accurately) these important measurements in such a short period of time.

The CCD camera technology is recognized as the Industry standard and the sophisticated software provides the operator with simple, logical procedures resulting in the fastest format to align a vehicle.

The software help screen has hundreds of animations, images, and detailed drawings that depict the method of adjustment for each vehicle and other important information. There is also a "spoiler" program for those vehicles with low air dams.

Ease of Use:
Many service shops have been hesitant to add alignment service to their list of "services performed". Atlas alignment equipment is the perfect answer for those service centers that have not added an alignment machine to their list of shop equipment.

Many of the BIG BRAND names would have you believe that you must be a graduate from an engineering college to operate an alignment machine. The Atlas Edge 601 is easier to use than downloading songs to your iPod ®. If you know anything about alignments, you will be able to set up and use the Atlas Edge 601 within minutes of opening the boxes. The four button arrow keys make alignments easier to do than changing a 24 inch custom wheel.

Quality and Reliability:
Several BIG BRAND alignment manufacturers try to intimidate or scare customers into believing that if you don't buy their red BIG BRAND alignment machine, then you will never have future service or updates. We smile (loudly) at these ridiculous claims. The price of tire changers and wheel balancers has gone down dramatically over the past 5 years. Why has the price of alignment equipment remained so high? One reason, the alignment machine market is dominated by only one "player" that has kept the price of alignment equipment "artificially" inflated. Most alignment shops do not make their money by strictly doing the alignments. These shops make their money by "hanging parts" and then doing the alignment. Speed and accuracy combined with a small initial investment make the Atlas brand far superior to other machines.

Many service shops are afraid to buy any other brand of alignment machine other than the BIG BRAND machine, because they believe that all the "good alignment techs" have only used the BIG BRAND alignment equipment and will not use a "No-Name" brand. Well, the Atlas brand is made by a manufacturer that has been making alignment instrumentation for the past 38 years.

"F.A.S.T" Finder System:
The Atlas 401 and Atlas 601 are the only aligner systems offering the Front Axle Speed Test "FAST" Finder System. The FAST Finder System allows you to find out within minutes whether a vehicle needs an alignment. You have the ability to mount only the front two sensor heads and obtain a fast printout of the condition of the front steering axle. This can be used for quick alignment checks which will help you sell alignment service and make your shop more money!

Component Loaner Program:
Parts for our Atlas alignment machines are repaired under our Component Loaner Program. This is a tried and true program that has been in place for more than 10 years. The beauty of the Atlas system is that it is cleanly divided into only 5 major components - 4 sensor heads and one PC. We diagnose your problem by phone or internet access. If one of the components is at fault we will send you a loaner component via FedEx. You simply place your component in the same packaging and FedEx automatically returns two days later to retrieve it and return it to us.

This is a faster, more efficient, and less costly method of offering service to our customers. It reduces customer's downtime which means more income. It is a more modern and innovative way of providing service and support.

Software Updates:
Software updates to the Atlas 401 and Atlas 601 machines are FREE. All you need is an internet connection. If you do not have an internet connection, we can also send you a USB Flash Drive which can be used to download updates.

Vehicle Target Data:
The vehicle data base is compiled by the U.S. Company MOTOR. Motor has one major release each year which means an upgrade is available for purchase for a nominal charge (Between $350 and $495) each July. In other words, most 2011 vehicle data will be included in the July 2011 upgrade. The target data starts with vehicles in the early to mid 1960's and continues thru 2011.

Important Facts Regarding our Target Data:

• Originates from a major U.S. auto company (MOTOR, owner of ALLDATA) for vehicles sold in the U.S. – NOT A EUROPEAN DATABASE.
• Over 90,000 vehicles listed in the database.
• Upgrades available each July by internet or by flash drive.
• Alignment data can also be easily entered into the system manually using the keyboard.
• Customer is not obligated to purchase the upgrade each year.
• If the customer skips one year (2011) the 2012 upgrade will include the 2011 upgrade. (N/C)

Parts And Accessories:
Atlas believes that service equipment should be no more complicated (in fact, less complicated) than the electronic system on today's vehicles. If your shop can work on today's cars and trucks, then your shop can easily diagnose and repair any Atlas wheel service equipment. Most shops want to control their own destiny when it comes to "fixing their own stuff". Greg Smith Equipment stocks the parts and accessories to get your shop "up and running" if any of your Atlas wheel service equipment needs to be serviced. We supply the parts (ASAP) and you supply the labor.

This simple concept is why Atlas wheel service equipment is the fastest growing brand of equipment in the world. Why wait for the BIG Brand service tech to visit your store, order the parts, and charge some ridiculously high price for installing simple "plug and play" parts.

This equipment is very sophisticated, but is also very durable and simple to repair, if repairs are ever needed.

Atlas offers a very low "up front" purchase price and supports their products by stocking parts and accessories that can be easily installed by the end-user.

The computer and printers found in the Atlas Edge 601 may be purchased locally. Even the sensor batteries are available locally. Greg Smith Equipment and Atlas Equipment believe that the profit should be made from the sale of the equipment; not from "nickeling and diming" our customers on inflated "proprietary items" that could easily (and cheaply) be bought locally.

Remote Technical Support:
Use your Internet access to update your software and diagnose issues with your Edge alignment equipment. Greg Smith Equipment recommends that our customers install TeamViewer ® on their alignment computer system.

TeamViewer ® allows a "remote" Atlas Edge alignment service technician to "take control" of the customer's alignment system and update previously installed software.

The "remote" technician can also diagnose and correct just about any issue without the need for "hands on". This service can be performed during hours when the shop is not open for business.

Most customers have high-speed hard wired Internet or wireless Internet at either their business or home. In some instances, the sensors will need to be attached to the alignment system during a "remote" software update or diagnostic session. This situation would require that the TeamViewer ® be accessed (through the Internet) at the business location. However, several software updates may require only the CPU to be accessed. The customer (if he does not have Internet at the shop) may remove his CPU from the alignment machine and take it to a location that has high speed Internet service.

Calibration:
You can Calibrate this Machine yourself. Click Here.

Warranty:
Warranty is one year for parts. For six months we will furnish labor to correct the problem. This does not include transportation costs for shipping components back and forth. This also does not include any on site repairs to customer location.

Protect Your Atlas Edge Wheel Aligner With Battery Backup And Surge Protection!

	Size:	Pages:
Atlas Edge 401/601 Manual	1.6 MB	24	Download
Atlas Edge 401/601 Alignment Procedures	1.6 MB	24	Download
Atlas Edge 401/601 Registration Form	90 KB	1	Download
Atlas Fast Clamp Assembly Guide	903KB	10	Download
Atlas Edge 601 Video			Watch
Atlas Edge 601 Highlights And Features Video			Watch
Atlas Edge 601 Software And Features Video			Watch
Atlas Edge Fast Clamp System Video			Watch
