Atlas:
Greg Smith Equipment is proud to announce the arrival of the newest in our Atlas series of quality lifts:

The Atlas Garage Pro 8,000 LB. capacity 4 post storage/service Lift.

Greg Smith Equipment believes that the Atlas brand above ground auto lift offers a competitive priced above ground auto lift that offers more features and benefits than the ever increasing number of "Chinese" auto lifts sold by no-name Internet marketers.

All Atlas and Direct (black) portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson.

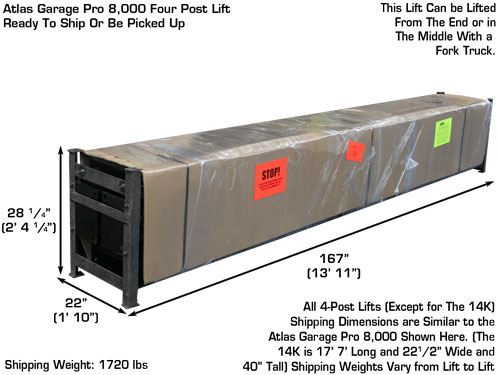

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

Lock Ladder Column Design:
The new Atlas Garage Pro 8,000 lb. Storage Lift has the "lock ladder" column design system. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The "old-style" welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can "micro-manage" the correct runway height to accommodate any vehicle. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Safety Lock System:
This Atlas Garage Pro 8,000 lb. Storage Lift locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts.

Flow Restrictor:
The Atlas Garage Pro 8,000 lb. Storage Lift has flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.

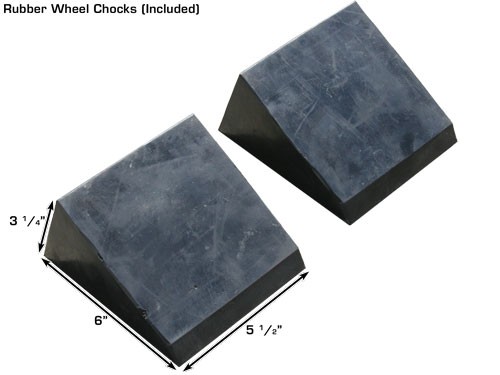

Wheel Chocks:
Set of 2 (for Free)

Zerk Fittings:
The Atlas Garage Pro 8,000 has zerk fittings in each corner to allow the proper flow of grease to the pulleys that are used to route the oversized cables.

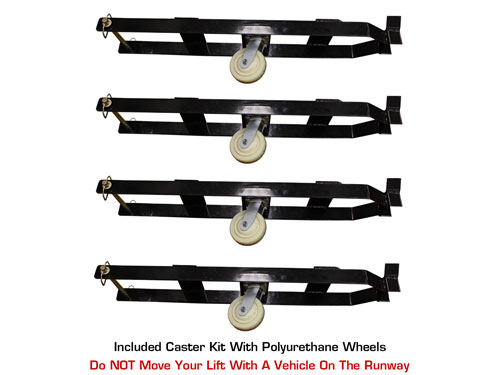

Polyurethane Caster Wheels (Standard):
The Atlas Garage Pro 8,000 comes standard with polyurethane wheels on the caster kit. These no-mar wheels allow the operator to roll the lift over an expensive epoxy floor with little risk of damage. Even if you have and old concrete floor, the polyurethane wheels on the Atlas Garage Pro 8,000 make this lift easier to roll than the caster kit with the steel wheels.

Manual Single Point Release:
The Atlas Garage Pro 8,000 lb. Storage Lift has manual single point release that allows the operator to release all the safety locks at one time.

Does Not Need To Be Anchored To The Floor:
The Atlas Garage Pro 8,000 lb. Storage Lift DOES NOT need to be anchored to the floor. However, if you are using a four post above ground lift many times each day, the lift may "scoot" a little on a smooth concrete floor. All four post lifts will move slightly on a smooth concrete floor if there is a constant flow of vehicles on and off the lift. The stability and integrity of the lift will not be compromised by the slight "scooting" of the four post lift. To eliminate the possibility of any "scooting", we recommend you anchor (with just one anchor) two of the column bases to your concrete floor. This anchoring will prevent the lift from "scooting".

Installation:
Most of our above ground lift customers install their own car lifts. The average time to assemble the Atlas Garage Pro 8,000 lb. Storage Lift car lift is about four hours (two people).

Parts:
Greg Smith Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel can be found at all three of our locations.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.

Call the professionals at Greg Smith Equipment.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Atlas Garage Pro 8,000 Specifications
Capacity	8,000 LB
Lifting Height To Top Of Runway	72" (6')
Clearance Under Runways	67 ½" (5' 7 ½")
Height of Columns	83" (6' 11")
Overall Width (Without Motor)	104 ½" (8' 8 ½")
Overall Width (With Motor)	115" (9' 7")
Overall Length with Approach Ramps	206 ¾" (17' 2 ¾")
Overall Length without Approach Ramps	175 ½" (14' 7 ½")
Approach Ramps	36 3/8" (3' 3/8")
Runway Width	18 ½" (1' 6 ½")
Runway Length	165 ¾" (13' 9 ¾")
Runway Thickness	4 ½"
Width Between Runways	37" (3' 1")
Width Between Runway Rails	31 ½" (2' 7 ½")
Outside Runway to Outside Runway	74 5/8" (6' 2 5/8")
Size of Column	6 1/4" x 3 3/8"
Clearance Between Columns	94 ½" (7' 10 ½")
Length Between Columns	157 ½" (13' 1 ½")
Base of Column	10 1/8" x 11 3/4"
Maximum Wheel Base	153 ½" (12' 9 ½")
Drive Thru (Outside of tire to outside of tire)	80 ½" (6' 8 ½")
Cable Diameter	.350"
Gauge Of Steel	6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor	110 Volt
Shipping Weight	1,720 LB.

Locking Positions Under Runway (+/ - 2")	Locking Positions Top Of Runway (+/ - 2")
19 ½"	24"
25 ½"	30"
31 ½"	36"
37 ½"	42"
43 ½"	48"
49 ½"	54"
55 ½"	60"
61 ½"	66"
67 ½"	72"

	Size:	Pages:
Atlas Garage Pro 8,000 Manual	1.1 MB	25	Download
