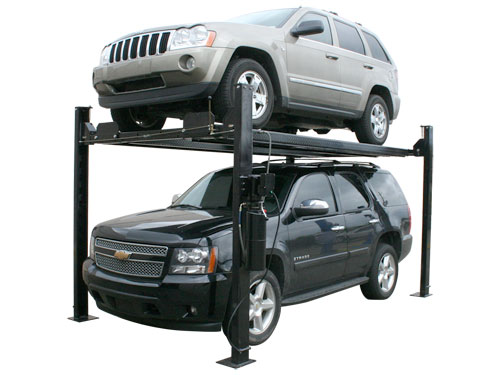

The Atlas Garage Pro 8000 EXT is a true 8,000 LB. four post lift. The Atlas Garage Pro 8000 EXT incorporates many of the great features of both the Atlas Garage Pro 8000 and the Atlas Garage Pro 9000.

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would "go higher" to allow them to park their taller vehicles under the elevated ramps.

Many of our competitors sell "taller" lifts. However, their "taller" lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but does not need to have longer ramps. (Longer ramps take up needed garage space). Most customers want to store a car on top and park a SUV or pick up truck below. There is no need for longer ramps. Our Atlas Garage Pro 8000 EXT ramps will accommodate a vehicle with a 156 inch wheel base. The Atlas Garage Pro 8000 EXT has been engineered to provide 79" of clearance UNDER the bottom of the raised runway, but keep the runway length to just less than 14 feet long.

If you need the extra lifting height of the Atlas Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the NEW Atlas Garage Pro 8000 EXT is the perfect choice.

The Atlas Garage Pro 8000 EXT is capable of lifting your pick up truck or car 84 1/4 inches. This above ground lift is the perfect choice for storing your vehicle. The extended height feature of the Atlas Garage Pro 8000 EXT Plus makes this lift the perfect choice for parking taller vehicles under stored vehicles.

The Atlas Garage Pro 8000 EXT comes standard with a powerful 110 volt power unit.

All Atlas and Direct (black) portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

Pulley Block System:
The Atlas Garage Pro 8000 EXT exclusive "Pulley Block System" uses a larger diameter cylinder and piston than the competition. The advantages of this system include reducing side loading pressure on the cylinder shaft bearings. The system provides 2" of lift for every 1" of piston stroke travel.

Lock Ladder Column Design:
The Atlas Garage Pro 8000 EXT has the same "lock ladder" column design system as the Garage Pro 8000, Garage Pro 9000, and Atlas 14K. The columns on our 7,000 LB. 8,000 LB. 9,000 LB. and 14,000 LB. four post lifts incorporate the "lock ladder" system which allows the customer to level the lift runways (both front to back and side to side), on floors that are not quite level. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Double Lock Safety System:
This Atlas Garage Pro 8000 EXT locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts. The DOUBLE LOCK SAFETY SYSTEM is found exclusively on the Atlas Garage Pro 8000 EXT, Atlas Garage Pro 8000, Atlas Garage Pro 9000, and the Atlas Pro 14K.

The Atlas Garage Pro 8000 EXT incorporates the unique DOUBLE LOCK SAFETY SYSTEM into each of its four oversized columns. The DOUBLE LOCK SAFETY SYSTEM is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This DOUBLE LOCK SAFETY SYSTEM is found only on other four post above ground lifts costing hundreds of dollars more than the Atlas Garage Pro 8000 EXT.

Single Point Release:
The Atlas Garage Pro 8000 EXT has manual single point release that allows the operator to release all the safety locks at one time.

Does Not Need To Be Anchored To The Floor:
The Atlas Garage Pro 8000 EXT DOES NOT need to be anchored to the floor. However, if you are using a four post above ground lift many times each day, the lift may "scoot" a little on a smooth concrete floor. All four post lifts (Including the Direct Lift four post lifts and all other competitor's four post lifts) will move slightly on a smooth concrete floor if there is a constant flow of vehicles on and off the lift. The stability and integrity of the lift will not be compromised by the slight "scooting" of the four post lift. To eliminate the possibility of any "scooting", we recommend you anchor (with just one anchor) two of the column bases to your concrete floor. This anchoring will prevent the lift from "scooting".

Installation:
Most of our above ground lift customers install their own car lifts. The average time to assemble the Atlas Garage Pro 8000 EXT car lift is four hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Parts:
Greg Smith Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.
Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our four post lift warranty please click here.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Atlas Garage Pro 8000 EXT Specifications
Capacity	8,000 LB
Lifting Height	84 1/4" (7' 1/4")
Overall Width (Without Motor)	104 3/8" (8' 8 3/8")
Overall Width (With Motor)	114" (9' 6")
Length Between Columns	157 5/8" (13' 1 5/8 ")
Overall Length with Approach Ramps	207 1/2" (17' 3 ½ ")
Overall Length without Approach Ramps	175 ½" (14' 7 ½")
Approach Ramps	37" (3' 1")
Total Runway Width	21 1/4" (1' 9 1/4 ")
Runway Length	165 1/2" (13' 9 ½ ")
Runway Thickness	5"
Width Between Runways	37 3/8"
Width Between Runway Rails	31 3/4"
Outside Runway to Outside Runway	74 3/4" (6' 2 ¼")
Clearance Under Runways	79" (6' 7")
Size of Column	6 1/4" x 3 3/8"
Clearance Between Columns	94 3/8" (7' 10 3/8")
Base of Column	9 5/8" x 11 1/2"
Height of Columns	98 1/2" (8' 2 1/2")
Maximum Wheel Base	153 ½" (12' 9 ½")
Drive Thru (Outside of tire to outside of tire)	80 ½ " (6' 8 ½ ")
Cable Diameter	.350"
Gauge Of Steel	6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor	110 Volt
Shipping Weight	1,739 LB.

11 Locking Positions Under Runway (+/ - 2")	11 Locking Positions Top Of Runway (+/ - 2")
21" (1' 9")	26" (2' 2")
27" (2' 3")	32" (2' 10")
33" (2' 9")	38" (3' 2")
39" (3' 3")	44" (3' 8")
45" (3' 9")	50" (4' 2")
51" (4' 3")	56" (4' 8")
57" (4' 9")	62" (5' 2")
63" (5' 3")	68" (5' 8")
69" (5' 9")	74" (6' 2")
75" (6' 3")	80" (6' 8")
81" (6' 9")	86" (7' 2")

	Size:	Pages:
Atlas Garage Pro 8,000 EXT Manual	3.2 MB	28	Download
