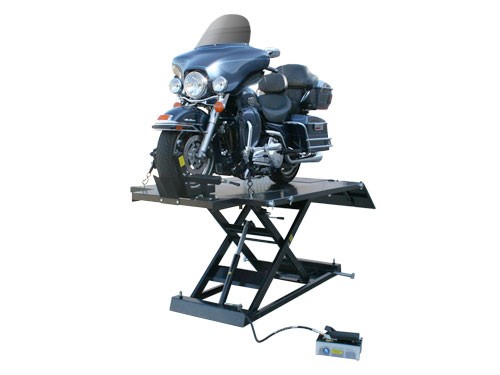

Atlas HI-RISE 1500 Motorcycle/ATV Lift
Product Code HT1005-KIT

The Atlas HI-RISE 1500 includes a wheel vise, two side extensions, the chopper extension, and approach ramps.



$1,195.00

Add to Cart

  • Weight capacity – 1,500 LB.
  • Includes removable drop out section
  • Includes chopper extension
  • Table length without approach ramp or chopper extension – 80”
  • Removable approach ramp included
  • Maximum lifting height - 43”
  • Lowered height – 7 ½”
  • Table width – 51" with side extensions
  • Powered by the Atlas HTTLA 5100 air/hydraulic power unit
  • Heavy Duty Construction
  • Vise included
    • The Atlas HI-RISE 1500 is one of our most popular motorcycle and ATV lifts.

    This lift has a manufacturer’s rated lifting capacity of 1650 LB., but GSES rates the lift @ 1500 LB. (because we always under rate our weight capacities)The Atlas HI-RISE 1500 motorcycle lift is powered by the Atlas HTTLA 5100 air/hydraulic power unit. This air/hydraulic power system has an extra large hydraulic fluid reservoir; thus assuring a smooth and steady lift travel to the highest locking position.  You must have an air compressor that produces a minimum of 100 PSI to effectively operate the Atlas HI-RISE 1500 lift.

    Increased Lifting Height:
    The Atlas HI-RISE 1500 has a maximum lifting height of 43 inches. This increased lifting height makes it easier to work on vehicles while the operator is standing.

    Included Chopper Extension:
    The included chopper extension increases the diamond plated center section of this motorcycle lift to 100 ¾ inches.

    Drop Out Rear Section:
    The Atlas HI-RISE 1500 includes a standard drop out rear section to allow for easy removal of the rear wheel assembly.

    Portable:
    The Atlas HI-RISE 1500 is portable.

    Front Wheel Clamp and Approach Ramps:
    The Atlas HI-RISE 1500 motorcycle/ATV lift comes with a heavy duty front wheel clamp and a set of adjustable approach ramps.

    Warranty:
    1 year structural, 90 day hydraulic.
    Atlas HI-RISE 1500 Specifications
    Weight Capacity 1,500 lbs.
    Overall length (w/ ramps)* 125" (10' 5 ")
    Center Table length (w/o ramps)* 99 ¾" (8' 3 ¾")
    Side Extension length (w/o ramps) 88 1/2" (7' 4 1/2")
    Center Table width (w/ side extensions) 51 1/8" (4' 3 1/8")
    Center Table width (w/o side extensions) 29 ½"
    Rear Cut Out 17" wide x 20" long
    Height fully raised 42 1/2 " (3' 6 1/2")
    Height lowered 8 1/8"
    6 Locking Positions (23", 27 ½", 31 ¼", 34 ¾", 37 ½", and 40")
    Air Requirements 90 - 100 PSI / 5 CFM Delivery
    Gauge of Steel 11 Gauge (.11" / 2.8mm)
    Shipping Weight 800 Lbs.
    *These measurements are taken with the free Chopper Extension attached. The Chopper Extension is 20 ¾" long.
