Atlas® Kwik Bay Commercial Grade Open Center Portable 7,000 Lbs. Capacity
Product Code ATTD-7K-KWIK-BAY

Related Products


As low as $61/month

  • 7,000 LB. Capacity
  • One set (4) of positioning blocks
  • Portable
  • Ramps lock horizontally to extend
    runway length
  • Zerk grease fittings at hinge points
  • Open middle for easy access.
  • 120V motor
  • Air operated locks
  • 2 year structural, 2 year hydraulic
    limited warranty
  • Shipping weight: 1,215 LB.

    READ THIS FIRST before you operate your Atlas® KwikBay midrise lift. The 7K Kwik Bay is designed to be a Quick Service Lift.

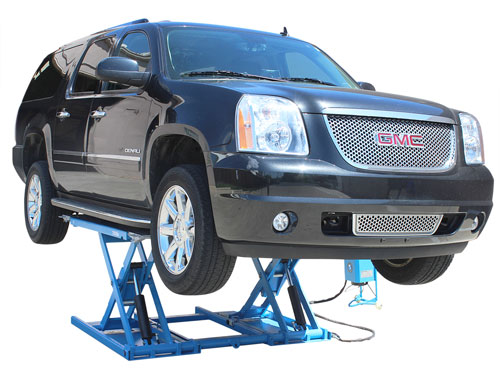

    The Atlas® Kwik Bay is a free standing 7,000 lb. capacity portable scissor lift. The Atlas® Kwik Bay is the perfect lift for Commercial Quick Service Bays and wheel service specialists that need extra lifting height. This portable lift easily raises a 7,000 lb. car or truck to a comfortable working height and does not require the customer to position arms under the lifting points of the car. The vehicle is driven over the scissor ramps and the operator simply positions the heavy duty rubber block assemblies under the correct lifting points. The operation is very quick and the chance for any damage to the underside of the car is minimal.

    The unique open middle of the Atlas® Kwik Bay allows access to many areas on the underside of the car that are not easily accessible with other portable mid-rise lifts employing a full superstructure.

    The approach ramps lock into a horizontal position to extend the runway platform length by an additional 10¼” on each end (effective lifting surface is expanded from 57 ½” to 78”).

    The dual power cylinders and the solid safety lock bars make the Atlas® Kwik Bay one of the most versatile and easy to use scissor mid-rise lifts sold in the USA and Canada.

    As with any scissor lift that is completely open (no cross support bar in the front or rear to keep the platforms level), the operator must make sure that the vehicle’s frame is positioned at least 6 inches from the inside of the platform. If too much weight is positioned near the edges of the platform (closer than 6 inches from the inside edges), the platforms may become “pigeon toed” and damage may occur.

    We sell Atlas® scissor lift support bars for those “professional customers” who are lifting heavy vehicles with narrow frames. Some “shade tree mechanics” may also use 4 x 4 landscape timbers (in place of Atlas support bars) to obtain the same results of dispersing the narrow frame weight over the entire platform lifting surface.
    Watch this video to see proper use of Atlas® support bars under a pickup truck.

    Each hinge point has a zerk grease fitting to allow maximum lubrication to each joint.

    Our Atlas® Kwik Bay has been thoroughly tested to meet Industry standards. The Atlas® Kwik Bay scissor mid-rise lift is powered by a 120 volt power unit that is mounted on a movable cart. The power unit can be remotely located near the lift for maximum efficiency. This cart is also used to move the Atlas® Kwik Bay on a smooth surface. The lift can be rolled to and from an inside work bay to an outside concrete apron work area.

    This motor must be connected to a 120 Volt system (30 amp) service. If the motor is operated on less than a 120 Volt power supply (120 volts at the motor), the lift will not be able to raise its rated capacity and damage may occur to the motor. Extension cords are not recommended.

    There are several methods available to increase your delivered voltage and amperage if your current electrical system is not adequate. Please contact a qualified electrician to discuss these options.

    The portable power unit console includes a (off/on) power switch, power indicator light, and three (3) control buttons. (up, down, and safety lock). Up button raises the lift. Lock button lowers the lift into a locked position. Lowering button (when depressed) raises the lift off locked position; then actuates lift lock bar movement (off locks) and then allows lift to lower to the ground.

    The Atlas® Kwik Bay is the ultimate scissor mid-rise lift that includes one set (4) of positioning blocks.

    The best way to position any vehicle on a scissor lift (with horizontal cylinders) is to allow some space (2-6 inches) between the lifting surface of the lift and vehicle’s lifting points. Click here to read more.

    The large “foot print” of the Atlas® Kwik Bay creates a steady platform for any raised vehicle. The Atlas® Kwik Bay has a lifting height of over 39” and remains rock solid at all safety lock positions.

    Click here to see what other customers think about the Atlas® Kwik Bay!

    We have hydraulic oil in stock!

    Leaving a vehicle on the 7K Kwik Bay longer than an 8 hour work day?

    Greg Smith Equipment stocks a complete inventory of parts for the equipment we sell.
    Click here to view photos of our parts department.


    Additional Information

    Atlas® Kwik Bay 7,000 LB.
    Mid Rise Lift Specifications
    Detailed Pictures/Specs.
    Capacity 7,000 LB.
    Maximum Lifting Height 41" (With positioning blocks)
    Minimum Lifting Height 4 ¼"
    Overall Dimensions 77 ½" (6' 5 ½") L x 72" (6') W
    Platform Dimensions 57 1/2" (4' 9 1/2") L x 19 ¼" (1' 7 ¼") W
    Ramps 10 ¼" x 19 ¼"
    Between Runways 33 ½" (2' 9 ½")
    Air Requirement 85-120 psi.
    Motor/Electrical Requirement 120 volt single (1) phase
    A 30 amp breaker is required.
    Oil Requirement 3.5 Gallons AW32/AW46
    Shipping Weight
    1,215 LB.
    Horizontal Cylinders Vs. Vertical Cylinders; the strengths and weaknesses of each.

    Size: Pages:

    Atlas® Kwik Bay Manual 466 KB 24 View
    Important Information!
    Read To Avoid Damaging Your Lift
    40 KB 1 View Image
    Long Term Vehicle Support Information 251 KB 2 View
