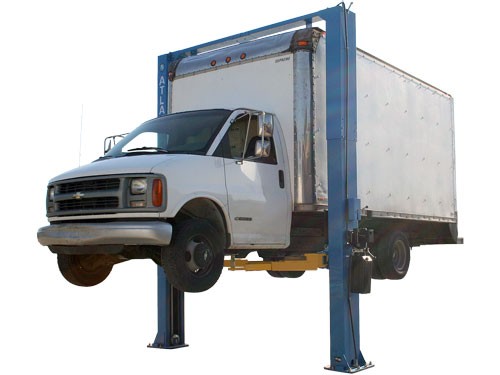

The Atlas Atlas PV-10HP is the taller version of the Atlas PV-10P two post above ground lift. The over head beam (that connects the two columns) is positioned two feet higher than the over head beam on the Atlas PV-10P. The taller position of the over head beam allows the Atlas PV-10HP above ground hoist to lift "taller vehicles". The Atlas PV-10P and Atlas PV-10HP are capable of lifting a vehicle a full 79". However, some cube vans, "ladder trucks" and other vehicles that are exceptionally tall, cannot be raised to the full lifting height on the Atlas PV-10P two post above ground hoist. The over head beam on the Atlas PV-10P two post lift would prevent the "top" of the vehicle to be raised past 11' 8".

The Atlas PV-10HP includes a two foot extension kit ( longer hydraulic hoses, longer aircraft quality cables, taller beam extensions) that extend the height of the overhead beam (which connects both columns) an additional two feet. (24 inches) Please remember that you must have a ceiling height of fourteen (14) feet to install the Atlas PV-10HP above ground lift.

The Atlas PV-10HP weighs approximately 200 LB. more than the Atlas PV-10P. All other specifications (add 24" to the height specifications) are the same as the Atlas PV-10P.

Where Do I Position My Two Post Lift In My Garage?
There are many factors that will determine the best place to mount your two post lift. This and other frequently asked lift positioning related questions are answered here.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.

Hydraulic Cylinder Configurations:
Greg Smith Equipment uses a newly designed cylinder configuration for the Atlas PV-10HP lift.

There are two popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts:

Greg Smith Equipment sells above ground lifts that incorporate both the direct drive cylinder configuration and the chain-over-roller cylinder configuration.

The base plate two post above ground lift implements the chain-over-roller configuration. This is the only hydraulic cylinder system that is possible in the base plate lift. The base plate two post above ground is designed for "low ceilings". The direct drive hydraulic cylinder configuration cannot be used in the base plate lift because the hydraulic cylinder would extend above the 9' 3" column when the lift arms were raised to the maximum height.

The "overhead" two post above ground lift may incorporate either the direct drive hydraulic cylinder or the chain-over-roller hydraulic cylinder.

Versatility:
The PV-10HP two post car lift is designed to offer that extra amount of lifting capacity to safely lift dual wheel pick up trucks or fully loaded ¾ ton or ½ ton pick up trucks. The Atlas PV-10HP also offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

The peg style truck adapters included with the Atlas PV-10HP two post car lift are necessary to lift vehicles with running boards. The Atlas PV-10HP peg style truck adapters (12 extensions) can be combined to raise the lift pads to reach the frame of most pick up trucks without damaging the running boards.

The Atlas PV-10HP has symmetrical columns and includes a set of EZ-metric arms. These arms can be configured into the symmetrical position to lift a full loaded pick up truck OR these arms can be configured to the asymmetric position to offer easier opening of the front door on some vehicles.

The Atlas PV-10HP two post above ground lift has single point release, overhead above ground configuration, EZ-metric arm configuration. The Atlas PV-10HP car lift is powered by a 220 Volt (single phase) power unit.

Flow Restrictor:
Greg Smith Equipment is proud to announce that many of our two post and four post lifts manufactured in our off shore factory (after 08-01-07) have flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.

Electrical Requirement:
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Installation:
The Atlas PV-10HP two post car hoist should be installed on a solid concrete floor. This PV-10HP concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI. The Atlas comes with the mounting hardware to anchor your two post lift to the appropriate concrete floor.

Most of our above ground lift customers install their own car lifts. The average time to install the Atlas PV-10HP car lift is four hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Safety Labels:
In a concerted effort to improve customer awareness as to the correct operation of our two post and four post above ground lifts, the factory is affixing the ANSI (ALI/101S) safety labels to our Atlas and Direct above ground vehicle lifts (after 08-01-07). These ANSI (ALI/101S) safety labels help to alert the operator as to certain potential dangers that may exist in the normal operation of the lift.

Parts:
Greg Smith Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.

Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our two post lift warranty please click here

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Atlas PV-10HP Specifications
Setup	Low	High
Capacity	10,000 LB.	10,000 LB.
Lifting Time	Ask Your Salesperson	Ask Your Salesperson
Overall Height	166" (13' 10")	170" (14' 2")
Overall Width	137-3/8" (11' 5 3/8")	137-3/8" (11' 5 3/8")
Outside Column to Outside Column	125" (10' 5")	125" (10' 5")
Maximum Lift Height (With Adapters)	82" (6' 10")
Maximum Lift Height (Without Adapters)	71 ½" (5' 11 ½")
Minimum Arm Height	4 1/2"
Between Columns	110-3/4" (9' 2 3/4")	110-3/4" (9' 2 3/4")
Column Size	14 1/2" x 7 1/2"
Column Thickness of Steel	2 gauge (.24", 6mm)
Drive Thru Symmetric/Asymmetric Configuration	96" (8') 90" (7' 6")	96" (8') 90" (7' 6")
Base of Lift	17 1/2" x 20 1/2"
Height Shut-Off	160" (13' 4")	164" (13' 8")
Cable Diameter	.375"
Motor/Electrical Requirement	2HP, 220 volt single (1) phase A 30 amp breaker is recommended.
Shipping Weight	2,150LB
