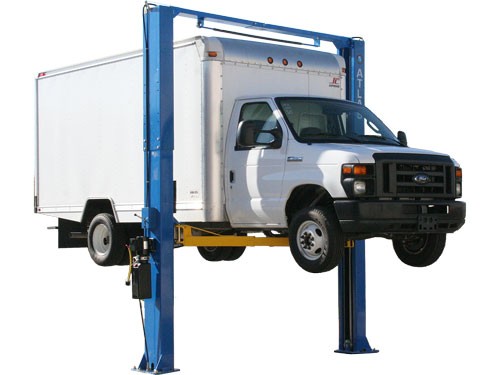

The Atlas PV-15P is a commercial grade lift designed to accommodate both long wheel base trucks and passenger cars. The distance between the symmetrical columns is almost 123" with a drive thru space of 109". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards and frame configurations.

The Atlas PV-15P has single point release, set of truck adapters, overhead above ground lift configuration, and symmetric arms.

Where Do I Position My Two Post Lift In My Garage?
There are many factors that will determine the best place to mount your two post lift. This and other frequently asked lift positioning related questions are answered here.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

Symmetrical Columns And Arms:
The Atlas PV-15P two post above ground lift has symmetrical columns and symmetrical arms to allow easy access to the widest of vehicles.

What Is Asymmetrical & Symmetrical? (Click Here)

Direct Drive Cylinder Configuration:
The Atlas PV-15P has the direct drive cylinder configuration.

There are two popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts:

Greg Smith Equipment sells above ground lifts that incorporate both the direct drive cylinder configuration and the chain-over-roller cylinder configuration.

The base plate two post above ground lift implements the chain-over-roller configuration. This is the only hydraulic cylinder system that is possible in the base plate lift. The base plate two post above ground is designed for "low ceilings". The direct drive hydraulic cylinder configuration cannot be used in the base plate lift because the hydraulic cylinder would extend above the 9' 3" column when the lift arms were raised to the maximum height.

The "overhead" two post above ground lift may incorporate either the direct drive hydraulic cylinder or the chain-over-roller hydraulic cylinder.

Electrical Requirement:
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Installation:
The Atlas PV-15P above ground lift should be installed on a concrete floor. This concrete floor should have a minimum of six (6) inches of concrete with 3000 PSI strength.

Most of our above ground lift customers install their own car lifts. The average time to install the Atlas PV-15P car lift is five hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Parts:
Greg Smith Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.

Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our two post lift warranty please click here.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Atlas PV-15P Specifications
Setup	Low	Middle	High
Capacity	15,000 LB.
Lifting Time	Ask Your Salesperson
Overall Height	150 3/8" (12' 6 3/8")*	162 3/8" (13' 6 3/8")	177 3/8" (14' 9 3/8")
Height To Shut Off Bar	140 3/4" (11' 8 3/4")*	152 3/4" (12 8 3/4")	167 3/4" (13' 11 3/4")
Overall Width	158" (13' 2")
Overall Width (Without Motor)	150 ¼" (12' 6 ¼")
Outside Column to Outside Column	138 ¾" (11' 6 ¾")
Maximum Lift Height	69 1/8" (5' 9 1/8")
Maximum Lift Height (With Truck Adapters)	79 ¾" (6 7 ¾")
Minimum Pad Height	6 5/8"
Between Columns	122 7/8" (10' 2 7/8")
Column Size	14 3/8" x 7 3/4"
Column Thickness of Steel	2 gauge (.24", 6mm)
Drive Thru	109" (9' 1")
Base of Lift	17 ½" x 20 ½"
Cable Diameter	.375"
Motor/Electrical Requirement	4 HP, 220 volt single (1) phase. A 30 amp breaker is recommended.
Shipping Weight	2,600 LBS.

*Requires the purchase of additional shorter cables.

Requires a minimum of 6" of concrete with 3000 psi.

	Size:	Pages:
Atlas PV-15P	1.7 MB	29	Download
