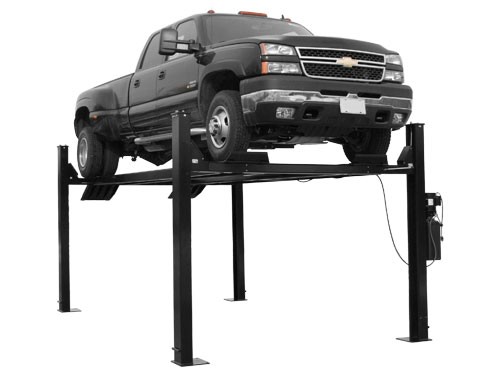

This 4 post lift weighs almost 700 LB. more than our Direct Lift Pro Park 8S four post lift. The Pro Park 9 Plus four post above ground lift incorporates more features than any other competitors' four post lifts that are sold in the USA. This lift is a portable four post lift incorporating polyurethane casters on the caster kit to prevent damage to the garage floor.

The Pro Park 9 Plus is capable of lifting your pick up truck or car to 85 inches. This above ground lift is the perfect choice for parking taller vehicles under your stored vehicle. The commercial grade features of the Pro Park 9 Plus make this lift the perfect choice for automotive service centers that need a professional lift at a competitive price.

The Direct Lift Pro Park 9 Plus comes standard with a powerful 110 volt power unit.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

"Lock Ladder" Column Design:
The Direct Lift Pro Park 9 Plus has the same "lock ladder" column design system as the Pro Park 8S, Pro Park 8 Plus, and Atlas 14K. The columns on our 7,000 LB. 8,000 LB. 9,000 LB. and 14,000 LB. four post lifts incorporate the "lock ladder" system which allows the customer to level the lift runways (both front to back and side to side), on floors that are not quite level. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Double Lock Safety System:
This Pro Park 9 Plus locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts. The DOUBLE LOCK SAFETY SYSTEM is found exclusively on the Direct lift Pro Park 9 Plus, Direct Lift Pro Park 8S, Direct Lift Pro Park 8 Plus, and the Atlas Pro 14K.

The Direct Lift Pro Park 9 Plus incorporates the unique DOUBLE LOCK SAFETY SYSTEM into each of its four oversized columns. The DOUBLE LOCK SAFETY SYSTEM is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This DOUBLE LOCK SAFETY SYSTEM is found only on other four post above ground lifts costing hundreds of dollars more than the Direct Lift Pro Park 9 Plus.

Flow Restrictor:
Greg Smith Equipment is proud to announce that many of our two post and four post lifts manufactured in our off shore factory (after 08-01-07) have flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.

Flow Restrictor:
The Direct Lift Pro Park 9 Plus may be equipped with the alignment kit and Pro Jack 4500 rolling bridges.

Manual Single Point Release:
The Pro Park 9 Plus has a manual single point release that allows the operator to release all the safety locks at one time.

Does Not Need To Be Anchored To The Floor:
The Pro Park 9 Plus DOES NOT need to be anchored to the floor. However, if you are using a four post above ground lift many times each day, the lift may "scoot" a little on a smooth concrete floor. All four post lifts (Including the Direct Lift four post lifts and all other competitor's four post lifts) will move slightly on a smooth concrete floor if there is a constant flow of vehicles on and off the lift. The stability and integrity of the lift will not be compromised by the slight "scooting" of the four post lift. To eliminate the possibility of any "scooting", we recommend you anchor (with just one anchor) two of the column bases to your concrete floor. This anchoring will prevent the lift from "scooting".

If you are using the Direct Lift Pro Park 9 Plus in a commercial application, then Direct Lift and Greg Smith Equipment insist that the Pro Park 9 Plus four post lift needs to be anchored to the concrete for a permanent installation.

Installation:
Most of our above ground lift customers install their own car lifts. The average time to assemble the Direct Lift Pro Park 9 Plus car lift is four hours.

View The Pro Park 9 Plus Assembly Guide.

Parts:
Greg Smith Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.
Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our four post lift warranty please click here.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Pro Park 9 Plus Specifications
Capacity	9,000 LB.
Lifting Height	85" (7' 1")
Overall Length with Approach Ramps	218 1/2" (18' 2-1/2")
Length Between Columns	172 1/2" (14' 4-1/2")
Overall Width (With Motor)	133" (11' 1")
Overall Width (Without Motor)	121" (10' 1")
Speed of Rise
Approach Ramps	31"
Total Runway Width	21 1/2"
Runway Length	188"(15'8")
Runway Thickness	5"
Width Between Runways	39 1/4"
Width Between Runway Rails	35 1/2"
Outside Runway to Outside Runway	79 1/4" (6' 7 1/4")
Clearance Under Runways	80" (6' 8")
Size of Column	7 3/4" x 4 3/4"
Clearance Between Columns	109.5" (9' 1-1/2")
Base of the Column	12" x 12"
Height of Columns	97" (8' 1")
Maximum Wheel Base	176" (14' 8")
Drive Thru (Outside of tire to outside of tire)	97.5" (8' 1-1/2")
Cable Diameter	.375" / 3/8"/ 10mm
Gauge Of Steel	5 Gauge (.2" / 1/5" / 5mm)
Motor	110 Volt
Shipping Weight	2,300 lbs.

Locking Positions Under Runway (+/ - 2")	Locking Positions Top Of Runway (+/ - 2")
20 1/2" (1' 8-1/2")	25 1/2" (2' 1-1/2")
26 1/2" (2' 2-1/2")	31" (2' 7")
32 1/2" (2' 8-1/2")	37" (3' 1")
38 1/2" (3' 2-1/2")	43" (3' 7")
44" (3' 8")	49" (4' 1")
50 1/2" (4' 2-1/2")	55" (4' 7")
56 1/2" (4' 8-1/2")	61" (5' 1")
62 1/2" (5' 2-1/2")	67" (5' 7")
68 1/2" (5' 8-1/2")	73" (6' 1")
74 1/2" (6' 2-1/2")	79 1/4" (6' 7 1/4")
80 1/2" (6' 8-1/2")	85" (7' 1")

	Size:	Pages:
Direct Lift Pro Park 9 Plus Manual	1.5 MB	37	Download
Direct Lift Pro Park 9 Plus Assembly Guide	1.6 MB	32	Download
