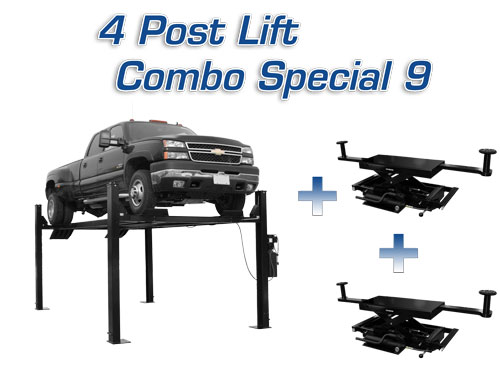

Direct Lift Pro Park 9 Plus:


This 4 post lift weighs almost 700 LB. more than our Direct Lift Pro Park 8S four post lift. The Pro Park 9 Plus four post above ground lift incorporates more features than any other competitors' four post lifts that are sold in the USA. This lift is a portable four post lift incorporating polyurethane casters on the caster kit to prevent damage to the garage floor.

The Pro Park 9 Plus is capable of lifting your pick up truck or car to 85 inches. This above ground lift is the perfect choice for parking taller vehicles under your stored vehicle. The commercial grade features of the Pro Park 9 Plus make this lift the perfect choice for automotive service centers that need a professional lift at a competitive price.

The Direct Lift Pro Park 9 Plus comes standard with a powerful 110 volt power unit.

"Lock Ladder" Column Design:
The Direct Lift Pro Park 9 Plus has the same "lock ladder" column design system as the Pro Park 8S, Pro Park 8 Plus, and Atlas 14K. The columns on our 7,000 LB. 8,000 LB. 9,000 LB. and 14,000 LB. four post lifts incorporate the "lock ladder" system which allows the customer to level the lift runways (both front to back and side to side), on floors that are not quite level. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Double Lock Safety System:
This Pro Park 9 Plus locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts. The DOUBLE LOCK SAFETY SYSTEM is found exclusively on the Direct lift Pro Park 9 Plus, Direct Lift Pro Park 8S, Direct Lift Pro Park 8 Plus, and the Atlas Pro 14K.

The Direct Lift Pro Park 9 Plus incorporates the unique DOUBLE LOCK SAFETY SYSTEM into each of its four oversized columns. The DOUBLE LOCK SAFETY SYSTEM is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This DOUBLE LOCK SAFETY SYSTEM is found only on other four post above ground lifts costing hundreds of dollars more than the Direct Lift Pro Park 9 Plus.

Flow Restrictor:
Greg Smith Equipment is proud to announce that many of our two post and four post lifts manufactured in our off shore factory (after 08-01-07) have flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.

Flow Restrictor:
The Direct Lift Pro Park 9 Plus may be equipped with the alignment kit and Pro Jack 4500 rolling bridges.

Manual Single Point Release:
The Pro Park 9 Plus has a manual single point release that allows the operator to release all the safety locks at one time.

Does Not Need To Be Anchored To The Floor:
The Pro Park 9 Plus DOES NOT need to be anchored to the floor. However, if you are using a four post above ground lift many times each day, the lift may "scoot" a little on a smooth concrete floor. All four post lifts (Including the Direct Lift four post lifts and all other competitor's four post lifts) will move slightly on a smooth concrete floor if there is a constant flow of vehicles on and off the lift. The stability and integrity of the lift will not be compromised by the slight "scooting" of the four post lift. To eliminate the possibility of any "scooting", we recommend you anchor (with just one anchor) two of the column bases to your concrete floor. This anchoring will prevent the lift from "scooting".


If you are using the Direct Lift Pro Park 9 Plus in a commercial application, then Direct Lift and Greg Smith Equipment insist that the Pro Park 9 Plus four post lift needs to be anchored to the concrete for a permanent installation.


Installation:
Most of our above ground lift customers install their own car lifts. The average time to assemble the Direct Lift Pro Park 9 Plus car lift is four hours.

View The Pro Park 9 Plus Assembly Guide.

Parts:
Greg Smith Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.
Call the professionals at Greg Smith Equipment.

Concerned with after sale service? Click here.

Warranty:
For information on our four post lift warranty please click here.

---

Direct Lift Manual Pro Jack 4500:

The Direct Lift Pro Jack 4500 is an economical rolling hydraulic jack designed to raise the front or rear portion of a vehicle allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of the hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

The Direct Lift Pro Jack 4500 is the perfect accessory for the Pro Park 9 Plus.

Advantages Over A Jack Tray:
The Pro Park 9 Plus four post lift comes with a jack tray. The jack tray has certain limitations that are eliminated by using the Direct Lift Pro Jack 4500. The jack tray (with a small floor jack or jack stands) will support ONLY THOSE LIFTING POINTS of the raised vehicle that are between the runways of the Direct Lift Pro Park 9 Plus four post lift. The Direct Lift Pro Jack 4500 has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.

Unique Roller System:
The Direct Lift Pro Jack 4500 is equipped with expandable supports which adjust to fit many different brands of four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large nylon rollers and heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds.

Included Truck Adapters:
The Direct Lift Pro Jack 4500 comes standard with a set of peg style truck adapters which increase the lifting height of the lift pads. These truck adapters will allow the Direct Lift Pro Jack 4500 sliding hydraulic jack to raise pick-up trucks that will sit higher off the runways than the average passenger car.

Manual Hydraulic Pump Operated:
This Direct Lift Pro Jack 4500 is operated with the manual hand pump that is also found on the Direct Pro Jack 3500.

Two Solid Locking Positions:
The Direct Lift Pro Jack 4500 sliding hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Direct Lift Pro Jack 4500 are engaged, the hydraulic pressure from the lifting cylinder of the Pro Jack 4500 is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).



"World-Class" Products:

Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Pro Park 9 Plus Specifications
Capacity	9,000 LB.
Lifting Height	85" (7' 1")
Overall Length with Approach Ramps	218 1/2" (18' 2-1/2")
Length Between Columns	172 1/2" (14' 4-1/2")
Overall Width (With Motor)	133" (11' 1")
Overall Width (Without Motor)	121" (10' 1")
Speed of Rise	Ask Your Salesperson
Approach Ramps	31"
Total Runway Width	21 1/2"
Runway Length	188"(15'8")
Runway Thickness	5"
Width Between Runways	39 1/4"
Width Between Runway Rails	35 1/2"
Outside Runway to Outside Runway	79 1/4" (6' 7 1/4")
Clearance Under Runways	80" (6' 8")
Size of Column	7 3/4" x 4 3/4"
Clearance Between Columns	109.5" (9' 1-1/2")
Base of the Column	12" x 12"
Height of Columns	97" (8' 1")
Maximum Wheel Base	176" (14' 8")
Drive Thru (Outside of tire to outside of tire)	97.5" (8' 1-1/2")
Cable Diameter	.375" / 3/8"/ 10mm
Gauge Of Steel	5 Gauge (.2" / 1/5" / 5mm)
Motor	110 Volt
Shipping Weight	2,300 lbs.

Requires a minimum of 4" of concrete with 3000 psi (although this lift does not need to be mounted to the floor).

Locking Positions Under Runway (+/ - 2")	Locking Positions Top Of Runway (+/ - 2")
20 1/2" (1' 8-1/2")	25 1/2" (2' 1-1/2")
26 1/2" (2' 2-1/2")	31" (2' 7")
32 1/2" (2' 8-1/2")	37" (3' 1")
38 1/2" (3' 2-1/2")	43" (3' 7")
44" (3' 8")	49" (4' 1")
50 1/2" (4' 2-1/2")	55" (4' 7")
56 1/2" (4' 8-1/2")	61" (5' 1")
62 1/2" (5' 2-1/2")	67" (5' 7")
68 1/2" (5' 8-1/2")	73" (6' 1")
74 1/2" (6' 2-1/2")	79 1/4" (6' 7 1/4")
80 1/2" (6' 8-1/2")	85" (7' 1")

Direct Lift Pro Jack 4500 Specifications
Capacity	4,500 LB.
Minimum Width	29 1/2"
Minimum Width with Arms In	39 1/2"
Maximum Width with Arms Out	64 3/4"
Working Width	35"-51"
Minimum Height with Lift Pad	3 3/4"
Lifting Pad	1 3/8"
Short Adapter	1 1/4"
Tall Adapter	5"
Raised Height without Adapter	11 3/4"
Raised Height with Small Adapter	13 1/2"
Raised Height with Large Adapter	16 3/4"
Raised Height with Small and Large Adapter	18 1/8"
Shipping Weight	400 LB.

	Size:	Pages:
Direct Lift Pro Park 9 Plus Manual	1.5 MB	37	Download
Direct Lift Pro Park 9 Plus Assembly Guide	1.6 MB	32	Download
