Direct Lift SPINS ("SIMPLE POSITION IN SECONDS") Rotisserie
Product Code TPPRO-ROTI

This auto body rotisserie is great for anyone wanting to restore a car or truck body or frame.

$945.00

Add to Cart

Description
Specifications
Downloads
Shipping Info
Articles

360 degrees of Movement

Powder coat finish

Heavy Duty Construction

Adjustable Width, Height, and Centering

2 Hydraulic Rams For Greater Height Adjustability

5" Polyurethane Swivel Caster Wheels

Specialty Adapters Also Available

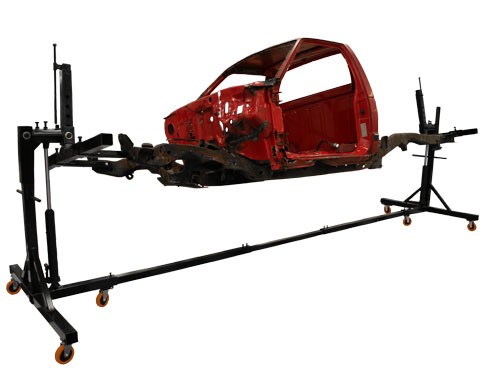

This auto body rotisserie is great for anyone wanting to restore a car or truck body or frame. The rotisserie allows a full 360º of movement, giving easy access to all parts of the body for welding, sandblasting, or any other work that needs to be done. This unit is adjustable not only in width and length, but with two hydraulic rams, is also adjustable in height.

The two hydraulic rams also make it easier to mount an auto body; lifting the body or frame straight from jack stands to the desired working height removing the need for any other equipment. The rotisserie is also easy to move with or without a body or frame mounted on it, because of 3 polyurethane swivel caster wheels per end. For labor and time saving, this versatile auto rotisserie is a must have for any hobbyist or professional restorer.

For information on our rotisserie warranty please click here.

Concerned with after sale service click here.

Auto Rotisserie
CAPACITY:	3000 LBS.
WIDTH (MOUNTING BRACKETS):	13 ¼" – 53 ¼"
WIDTH CAPACITY (CAR OR TRUCK BODY):	85"
WORKING HEIGHT:	18" – 48"
WORKING LENGTH:	up to 19'
CEILING HEIGHT REQUIRED:	8'
WARRANTY:	1 YR
THICKNESS OF STEEL	1/8"/9 GAUGE
CONSTRUCTION MAIN STRUCTURE	3"X3" SQUARE TUBING
SHIPPING WEIGHT	600 LBS.
