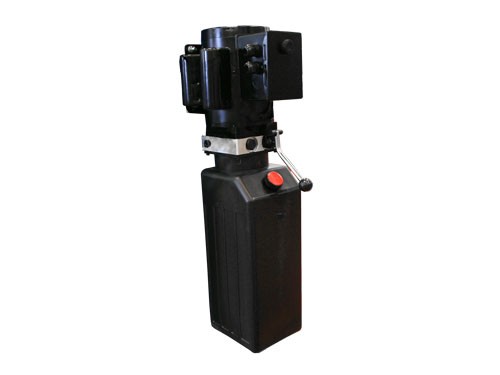

Hydraulic 220V Single Phase Auto Lift Power Unit
Product Code ATPK-220POWERUNIT
This power unit is engineered and designed to replace just about any electric/hydraulic power unit found on many two post lifts.
In Stock and Ready to Ship
Low Stock Remaining. Please Call for Current Availability.
Not Available at all Locations. Please Call for Current Availability.
Built in ball check valve Momentary push button switch Lever style manual lowering valve Vertical Mount
This power unit is engineered and designed to replace just about any electric/hydraulic power unit found on many two post lifts. Rotary Lifts®, Challenger Lifts®, Atlas Lifts, Direct Lifts®, Bend-Pak Lifts®, Forward Lifts®, and just about every other two post lift sold in the USA can use the power unit on their two post lift. The 220 volt, single phase, power unit will also work well with many four post lifts. The Direct Lift ProPark 8 S, the Direct Lift ProPark 8 Plus, and the Direct Lift ProPark 9 Plus can all use the power unit. Most brand name two post and four post lifts, and many of the imported two post and four post lifts can be powered by this electric/hydraulic power unit. This electric/hydraulic power unit is designed to work with an 8,000 lb. capacity two post lift or a 9,000 pound capacity two post lift, or a 10,000 pound capacity two post lift. The pressure setting on the internal pump is adjusted at the factory to the proper setting for most 8,000 pound capacity two post lifts up to and including 10,000 pound capacity two post lifts. The mounting bracket has elongated holes to allow the buyer to vertically mount this power unit to most two post lift column mounting brackets. Some two post lift columns may require the buyer to drill additional holes. Greg Smith Equipment has included thousands of these power units with the thousands of two post lifts and four post lifts that we have sold over the last few years. Power unit for two post and four post automotive lifts.
Power Unit Specifications
| | Motor | 3 HP, 1 Phase, 60 Hz, 208-230 V, 3450 RPM | | Amp Draw | 16/17 amps | | Reservoir | 3 gallon plastic reservoir with filler/breather cap | | GPM | 2.2 GPM | | Port Size | SAE 6 (9/16-18) | | Dimensions | 29 1/2" x 8" x 9 1/2" | | Weight | 55 lbs. |
Video — Hydraulic 220V Single Phase Auto Lift Power Unit
Photo Gallery — Hydraulic 220V Single Phase Auto Lift Power Unit
Click on one of the photos for a larger view...
Pictures may vary slightly (in color and features) from actual products received due to manufacturer's improvements.
|
|
|
|
