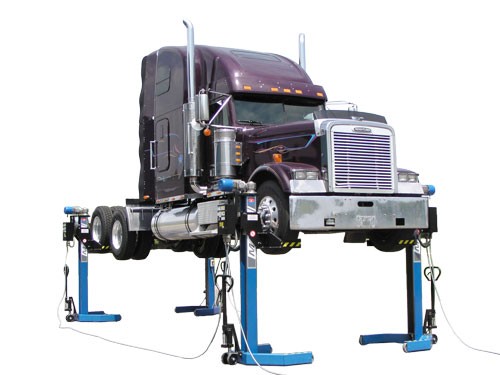

MAHA's MCL-16 Heavy Duty Mobile Column Lift, is available in configurations of 4 columns with a total combined lifting capacity as high as 64,000-pounds. No other mobile lifting system matches the MCL-16 for safety, durability, flexibility, and ease-of-operation. Whether you need to lift a bus, fleet vehicle, or fire truck, there is an MCL-16 system designed to meet your needs. The MCL-16 system's controls are easy to use and feature up/down and emergency stop buttons. A precision, hardened, ball bearing screw-nut assembly suspended from the top of the column provides the lifting power. Don’t worry about service or maintenance issues because the expected life of our ball bearing screw-nut design is much greater than typical outdated, low-cost acme thread technology.

Configurations:
Each column is mobile and can be easily positioned on the vehicle wheels for the lifting operation. It can be used both in automotive and heavy-duty repair shops. The diverse accessories allow the operator to use the MCL's for various lifting needs. The columns can be operated in pair mode and as a set of four.

Identical interconnecting cables with quick-disconnect plugs on each end make the setup quick and easy. A portable control box allows independent operation of the smaller sets. MAHA columns are identical, allowing them to be positioned in any order. An additional cable to form a complete loop is not required!

Safety:
MAHA mobile lifts offer unparalleled safety. They are ALI certified, but are built to an even higher standard. They have redundant safety systems to protect critical functions. These backup systems, which are not required for certification, are guaranteeing MAHA users additional safety features in operation.

Load Control:
Primary System
Raised vehicles are held in place by heavy duty industrial brakes that set automatically when power is released.

Redundant System
Wedge locks prevent the lifts from lowering in the unlikely event of a primary system failure. The locks are independent of the lifting mechanism and engage directly with the columns. Their stand-by role keeps them in like-new condition throughout the life of the lift.

Synchronization:
Primary System
Vehicles remain level during lifting and lowering due to the uniform speed of the column's mechanical drives.

Redundant System
Electronic controls monitor the lifts and make minor corrections if an out-of-level condition should occur. If level cannot be restored, the lift system shuts down.

MAHA Mobile Column Lifts are designed to be safe when they make their first lift as when they make their last!

Advantages:

• Easier under vehicle access for inspections and repairs
• Natural lighting provided by raised vehicle
• More comfortable and productive work environment for the technician
• Utilize more shop space with movable columns that allow work in or outside on a suitable concrete surface
• Less cost of work compensation and health insurance
• Less absenteeism

Return on investment:
Independent studies have shown that an investment for a set of MAHA Mobile Column Lifts can be recovered already after 120 days, if the lifts are used by four technicians, 40 hours a week. After that the additional revenue generated per year would be around $ 55,000.

MAHA MCL-16 Specifications
Load capacity per column	16,000 lbs.
Height	97.6"
Maximum Lifting Height	69"
Length Lifting Fork	12.2"
Length	42.9"
Total Width	45.3"
Width Lifting Fork	23.5"
Turning Circle	43.3"
Motor	2.4hp, 220V, 3-phase, 60 hertz
Weight	948 lbs.
