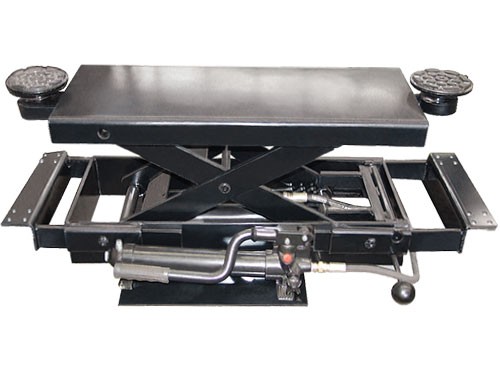

Master Series 3,500 LB. Jack
Product Code TP-XL-SJ3500

The Master Series 3,500 LB. capacity sliding hydraulic vehicle jack is the perfect choice for the owner of the Atlas Garage Pro 8,000 or Direct Lift Pro Park 8S.

$595.00

Add to Cart

Description
Specifications
Downloads
Shipping Info
Articles

3,500 LB. capacity

Manually operated

Scissor mechanism allows for level lifting

Compact size with a low profile

Adjustable width fits most four post lifts

3 safety lock positions

Adapters included

Powder coated finish

Smooth rolling action

Commercial grade

The Master Series 3,500 LB. capacity sliding hydraulic vehicle jack is the perfect choice for the owner of the Atlas Garage Pro 8,000 or Direct Lift Pro Park 8S. The Master Series 3,500 LB. will also fit the Direct Lift Pro Park 9 Plus. The Master Series 3,500 LB. jack is for those who want to perform wheel service on a vehicle that is positioned on top of their four post lift.

The complete Atlas Garage Pro 8,000 and Direct Lift Pro Park 8S four post lifts come with a jack tray. The jack tray has certain limitations that are eliminated by using the Master Series 3,500 LB jack. The jack tray (with a small floor jack or jack stands) will support ONLY THOSE LIFTING POINTS of the raised vehicle that are between the runways of the Atlas Garage Pro 8,000 and Direct Lift Pro Park 8S four post lifts. The Master Series 3,500 LB jack has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.

The Master Series 3,500 LB jack comes standard with a set of peg style truck adapters which increase the lifting height of the lift pads. These truck adapters will allow the Master Series 3,500 LB sliding hydraulic jack to raise pick up trucks that will sit higher on the runways than the average passenger car. The Master Series 3,500 LB. jack is operated by a manual hydraulic pump (porta-power pump) and does not require an air compressor for power. The Master Series 3,500 LB. sliding hydraulic jack also features three solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Master Series 3,500 LB. jack are engaged, the hydraulic pressure from the lifting cylinder of the Master Series 3,500 LB. jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

Finally, the versatile Master Series 3,500 LB. sliding jack is adjustable to fit between the runways of many of the other four post lifts that have been sold in the last several years.

Warranty:
Master Series lift products are covered by a limited manufacturer's warranty. Warranty claims must be made directly to the manufacturer. Customers will receive all warranty information with their lift.

Concerned with after sale service? Click here.

Master Series 3,500 LB. Jack Specifications
Capacity	3,500 LB.
Minimum Width	29 1/2"
Minimum Width with Arms In	39 1/2"
Maximum Width with Arms Out	61"
Minimum Height with Lift Pad	3 1/2"
Lifting Pad	1 3/8"
Short Adapter	1 1/4"
Tall Adapter	5"
Raised Height without Adapter	10 1/2"
Raised Height with Small Adapter	12 1/4"
Raised Height with Large Adapter	16"
Raised Height with Small and Large Adapter	17 1/4"
Shipping Weight	350 LB.
