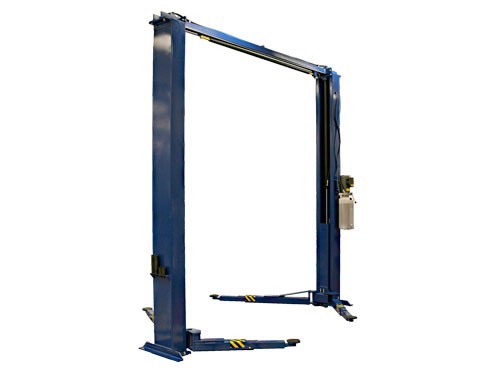

Master Series XL-11D:
The Master Series XL-11D is an 11,000 LB. capacity two post overhead above ground lift designed for years of service. The XL-11D features a single piece continuous column and dual cylinder direct drive lifting system.

The Master Series XL-11D is a good choice for those customers who demand the most lifting capacity at a low price and are not able to visit one of the Greg Smith Equipment Sales brick and mortar locations. We do not offer this lift for pick-up, but will be glad to ship you from one of our satellite warehouses.

Ask your salesman to explain the differences between the Atlas OH-10X and the Master Series XL-11D.

Where Do I Position My Two Post Lift In My Garage?
There are many factors that will determine the best place to mount your two post lift. This and other frequently asked lift positioning related questions are answered here.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

Direct Drive Cylinders:
Because of the dual cylinder direct drive system this lift has none of the chains or pulleys which other lifts feature and which may wear out over time. The strength of the direct drive system and the low minimum pad height together make this lift perfect for a shop looking to work on a wide range of vehicles, from Sports Cars to 1 Ton Dual Wheel Pick-up Trucks.

Peg Style Adapters:
The Master Series XL-11D comes standard with peg style truck adapters which are necessary to lift vehicles with running boards. The XL-11D features three lengths of peg style truck adapters which can be combined to raise the lift pads to reach the frame of most pick up trucks without damaging the running boards.

Electrical Requirement:
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Safety Shut Off Bar:
The XL-11D features a foam covered safety shut off bar just below the overhead crossbeam to prevent a vehicle from being raised too far.

Greg Smith Equipment:
Greg Smith Equipment is a brick and mortar distributor with over 30 years in the automotive aftermarket business and 30 professional employees. Our Master Series of lifts will now be available to those customers who demand high quality at the most competitive price. The Master Series Lift is available at many of our satellite warehouses located throughout the United States.

Parts:
Greg Smith Equipment stocks or has access to a complete inventory of all lift parts.

Warranty:
Master Series lift products are covered by a limited manufacturer's warranty. Warranty claims must be made directly to the manufacturer. Customers will receive all warranty information with their lift.

Concerned with after sale service? Click here.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Master Series XL-11D Specifications
Capacity	11,000 LB.
Lifting Time	Ask Your Salesperson
Overall Height	142 1/2"
Overall Floor Width	136 1/2"
Maximum Lift Height	79"
Minimum Pad Height	3 1/2"
Inside Column	115 1/2"
Column Size	12 3/8" x 7 1/2"
Thickness of steel	.24" (2 Gauge)
Drive Thru	95"
Base of Lift	26 3/8" x 11 3/4"
Motor/Electrical Requirement	220 Volt, 220 volt single (1) phase. A 30 amp breaker is recommended.
Shipping Weight	1,710 LB.

	Size:	Pages:
Master Series XL-11D Manual	400 KB	24	Download
