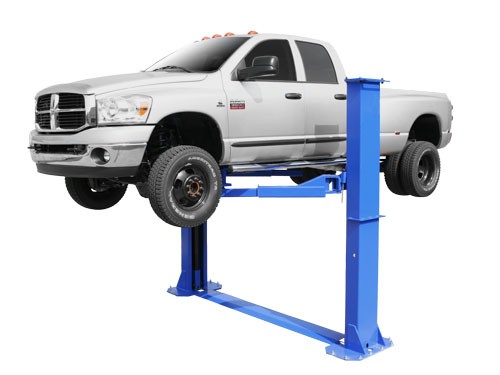

The Master Series XL-12 is a heavy duty 12,000 LB. capacity 2 post base plate above ground lift designed for years of service. This above ground lift is built with the same column structure as our Master Series XL- 15, but because this lift is a base plate lift and not an overhead lift, we have reduced the maximum lifting capacity.

The Master Series XL 12 (12,000 lb. manufacturer rated capacity) is a good choice for those customers who demand the most lifting capacity at the lowest possible price and are not able to visit one of the Greg Smith Equipment Sales brick and mortar locations. We do not offer this lift for pick-up, but will be glad to ship you from one of our satellite warehouses.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.
Watch our video on how to use a power tailgate to help you unload your product from a truck.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Greg Smith Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.
Watch our video on how to unload your two post or four post lift from a semi truck.

Base Plate Design:
A base plate lift (built with the same columns, cylinders, arms, and column footprint as a lift with the overhead beam) does not have the same lifting capacity as the overhead lift. The over head beam adds stability to the columns and therefore increases the lifting capacity of the overhead style above ground lift.

If you have low ceiling height (columns are 10 feet 2 inches tall), or need the ability to lift very tall vans or cube trucks, then the Master Series XL-12 is the perfect choice for heavy duty lifting. The XL-12 features an immense column base footprint to provide stability when lifting heavy trucks. The oversized columns have a support gusset that adds incredible strength to the already oversized beam. The column bases are attached with another set of flush gussets to add an extra layer of security to this already "over-built" lift.

This above ground lift has a diamond plated base plate that covers the hydraulic lines and equalization cables that run across the floor between the columns.

Versatility:
The dual 3" cylinders provide incredible lifting power. The adjustable symmetrical arms may be configured to offer an infinite amount of lifting positions. Greg Smith Equipment provides a free set of truck adapters and mounting hardware with the Master Series XL-12.

Chain-Over-Roller Cylinder Configuration:
The Master Series XL-12 has the chain-over-roller cylinder configuration.

There are two popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts:

Greg Smith Equipment sells above ground lifts that incorporate both the direct drive cylinder configuration and the chain-over-roller cylinder configuration.

The base plate two post above ground lift implements the chain-over-roller configuration. This is the only hydraulic cylinder system that is possible in the base plate lift. The base plate two post above ground is designed for "low ceilings". The direct drive hydraulic cylinder configuration cannot be used in the base plate lift because the hydraulic cylinder would extend above the 9' 3" column when the lift arms were raised to the maximum height.

The "overhead" two post above ground lift may incorporate either the direct drive hydraulic cylinder or the chain-over-roller hydraulic cylinder.

Dual Point Safety Release System:
The Master Series XL-12 has a dual point safety release system. Most above ground base plate lifts incorporate this dual point safety release system. Electronic controlled single point release systems can be problematic on base plate lifts.

Symmetrical Columns and Arms:
The Master Series XL-12 has symmetrical columns and symmetrical arms.

Two post base plate lifts CANNOT BE ASYMMETRIC! (Click Here)

Electrical Requirement:
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Greg Smith Equipment:
Greg Smith Equipment is a brick and mortar distributor with over 30 years in the automotive aftermarket business and 30 professional employees. The Master Series Lift is available at many of our satellite warehouses located throughout the United States.

Parts:
Greg Smith Equipment stocks or has access to a complete inventory of all lift parts.

Warranty:
Master Series lift products are covered by a limited manufacturer's warranty. Warranty claims must be made directly to the manufacturer. Customers will receive all warranty information with their lift.

Concerned with after sale service click here.

"World-Class" Products:
Greg Smith Equipment is proud to state that our manufacturers are definitely "world-class". Our Atlas products are sold throughout the world.

Instruction manuals that accompany products may contain certain specifications that do not apply to the product when used in the USA or Canada.

IE:
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.

The Greg Smith Equipment Sales website contains accurate electrical (and accessory) information (for use in the USA or Canada) about your product.

Please review the GSES website and discuss electrical (or accessory) questions with your salesperson before placing your order.

Master Series XL-12 Specifications
Capacity	12,000 LB.
Lifting Time	Ask Your Salesperson
Overall Height	122" (10' 2")
Overall Floor Width	150" (12' 6")
Maximum Lift Height	80 1/2" (6' 8 1/2")
Minimum Pad Height	9" inches
Base Plate Width	15 1/2" inches
Inside Column	121 1/2" (10' 1 1/2")
Drive Thru	108" (9')
Column Size	14 1/2" x 7 3/4"
Thickness of steel	1 Gauge (.279", 7 mm)
Base Of Lift	34 1/2" x 20 1/2"
Cable Diameter	.35"
Motor/Electrical Requirement	2HP, 220 volt single (1) phase. A 30 amp breaker is recommended.
Shipping Weight	2,440 LB.

Requires a minimum of 6" of concrete with 3000 psi.

	Size:	Pages:
Master Series XL-12 Manual	570 KB	16	Download
