Atlas® 200/700 Series Left (LH) Assist Arm

Product Code: #ATTC-LHA
$890.00
(0)
$890.00
FREIGHT INCLUDED
In-Store Pick Up Discount Available. Please Call For Details.
  • Shipping Weight: 160 LBS.
  • Shipping Dimensions: 40" x 14" x 13"

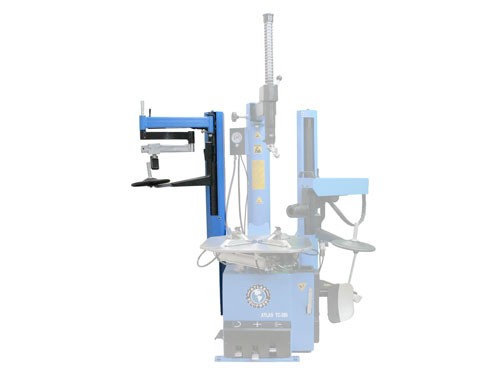

  • The Atlas® LH assist arm is designed to be mounted on the Atlas® TC289, Atlas® TC229, Atlas® TC221, and Atlas® TC755 wheel clamp tire changers. The pneumatic powered LH assist arm is a must have accessory to mount and demount many of the stiff sidewall tires found on today's vehicles. This Atlas® LH assist arm provides robotic power, allowing the operator to keep both hands free during the tire changing operation. The disc and rotating press arm exert an enormous amount of pressure on the sidewall of the tire so the operator can mount or demount a stiff sidewall tire.



    The pneumatic power cylinder produces sufficient power to allow the properly positioned pressure disc to exert both upward and downward pressure (depending if you are mounting or demounting) on the sidewall of the tire. You must exert enough (upward or downward) pressure on the tire's sidewall to effectively move the bead of the tire close to thecenter of the rim. Many of the cheaper arm assemblies are no more than an air cylinder mounted above the turntable.These low cost air cylinder arm assemblies exert only a minimal amount of downward pressure. This downward pressure is needed for mounting the tire on the wheel, but is ineffective when you need to dismount the tire from the wheel. The lifting disc of the Atlas® LH assist arm exerts an enormous amount of controlled pressure to gently force the lower bead up into the wheel cavity, so that the tire can be removed.The bead is held below the lip of the rim by the rotating bead press adapter as the tire is being mounted.



    The control toggle switch is positioned for maximum accessibility and ease of use.



    The Atlas® LH assist arm may be purchased at the same time you purchase your Atlas® TC289, Atlas® TC229, Atlas® TC221 or Atlas® TC755 wheel clamp tire changer, or you can purchase an Atlas® tire changer now; and add the Atlas® LH assist arm at a later date.


    Additional Information


    Size:Pages:
    Atlas® Left Hand (LH) Assist Arm Manual2 MB18Download
    Atlas® Left (LH) Assist Arm Assembly Guide886 KB9Download
