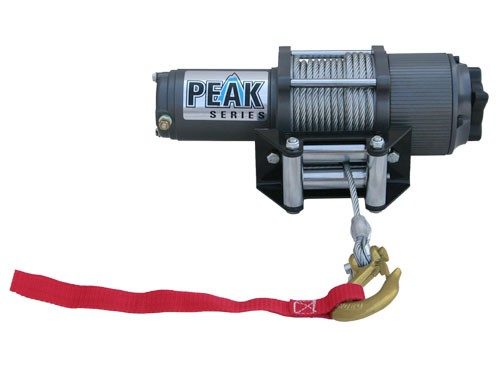

Atlas® 4,000 LB. Wireless ATV/UTV Winch with Fairlead Roller

Product Code: #ATDF4000
$169.00
(0)
$169.00
Greg Smith Equipment has added the Atlas® 4000 LB. UTV/ATV winch to its extensive line up of quality Atlas® PEAK winches. The New Atlas® 4K recovery winch is the perfect choice for the off-road enthusiast who demands BIG THINGS from a winch. Our extremely popular Atlas® 3K winch is the perfect choice for many of the popular smaller ATV units (size 350 cc and lower); BUT the BIG BOY TOYS need the power of the new Atlas® 4K winch.



Big Boys and Big Boy Toys go places that demand an extraordinary amount of "pulling power" when needed. The Atlas® 4K weighs 9 lbs. more than the Atlas® 3K winch and delivers the extra pulling power needed by the BIG BOY TOYS.



This winch is the REAL DEAL... If you own a 500 cc (or up) ATV or any of the number of heavy-duty UTV machines now being sold; then this is the winch for you!



Wireless Remote And Corded Handlebar Control:

The Atlas® 4k ATV/UTV winch can be operated using the wireless remote switch or the corded handlebar control. The Atlas® 4K winch comes with a roller fairlead and a mounting plate. There is plenty of power cord to connect your ATV/UTV battery to the remote mounted solenoid.



Designed For Use With ATVs And UTVs Only:

This winch is not designed for use with cars, trucks or boats. Call for details.



The Atlas® brand has been around for many years and is synonymous with quality automotive aftermarket equipment at unbelievable prices. Greg Smith Equipment Sales is the USA distributor for all Atlas® automotive products and Atlas® winches.



All Atlas® winches are built to our exacting specifications to ensure years of trouble free service for our customers. The Atlas® factory enjoys ISO9001: 2000 certification and also CE approval. We invite you to review our web site and see pictures of all the integral parts which are used to assemble our Atlas® winches. As you will see, only the highest quality parts and motors are used in the manufacture of our Atlas® winches. Our Atlas® winches are designed to go "head to head" with the other brand name winches on the market. Many of these winch competitors are introducing "economy" or "value" winch lines to compete (in pricing) with our Atlas® brand of winches. These "economy" or "value" winches are powered by undersized motors and built with lesser quality parts than those used in the competitors' other winches and our Atlas® winches. Even with lower quality parts, the competitors' "economy" or "value" winches are still priced higher than the better quality Atlas® winches offered by Greg Smith Equipment Sales.



If you are in the market for a self recovery winch to mount on your ATV, car hauler trailer, or on the front of your off-road vehicle, then look to the Atlas® brand for your best value. Atlas® has been manufacturing quality products at great prices for many years; you can trust the Atlas® name!



4,000 LB. ATV Wireless Winch Specifications
Single Line Rated Pull4,000 LB.
MotorPermanent magnet 1.1 HP 12V
ControlWireless remote and handle bar mounted control
Gear Reduction Ratio128.2:1, 3 Stage Planetary
Free SpoolingYes
Drum Diameter1.77"
Drum Length3.19"
Cable47 ½ ft. of ¼" diameter cable
Dimensions13.9" L x 4.6" W x 5.1" H
FinishSilver Gray Power Coat
Fairlead4 way roller fairlead
Battery14 amp/hour minimum or 250 CCA
Power In / Power OutYes
Shipping Weight30 LB.


Pull, Speed, Amperes, Volts (First layer)
Line pull
Line Speed

Current

lbs(kgs)
ft/min(m/min)
A


12V DC
12V DC
0
23.7(6.7)
26
500(227)
23.1(5.95)
35
1000(454)
20.6(5.3)
70
1500(680)
16.7(4.3)
98
2000(907)
13.4(3.45)
107
2500(1134)
10.7(2.75)
129
3000(1361)
8.5(2.2)
138
4000(1815)
6.79(1.75)
205


Line Pull In Layer
Layer
Rated Line Pull



lbs(kgs)
1
4000(1815)
2
2817(1278)
3
2573(1167)
4
2363(1072)
5
1975(896)


Size:Pages:
Atlas® 4,000 LB. ATV/UTV Winch Manual

1.8 MB27Download
Atlas® Winch Warranty Registration Form70 KB1Download
  • Permanent Magnet Motor 1.1 HP 12V
  • Wireless Remote
  • Power In & Out
  • Handle Bar Mounted Control
  • 47 ½ feet of cable
  • Free mounting plate
  • Free roller fairlead
A Winch Is Not A Hoist!
Is My Winch Operating Properly?

Please read this article to better understand how your Atlas®; winch will perform in a variety of
situations. If you do not understand the concepts presented in this article; please do not buy
our Atlas®; winch.
