Atlas® 414A 14,000 Lbs. Commercial Grade 4 Post Alignment Lift
Drive- through off-ramps are available as an option.

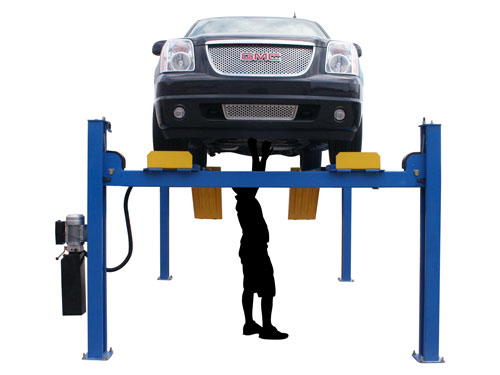

The Atlas® 414A (14,000 LB. capacity alignment lift) incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 414A is tested to ensure that this alignment lift system will perform flawlessly at its rated capacities. The Atlas® 414A has been manufactured to the same exacting specifications for many years.
The Atlas® 414A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".
We have hydraulic oil in stock!
Greg Smith Equipment stocks a complete inventory of parts for the equipment we sell.
Click here to view photos of our parts department.
|Atlas® 414A Specifications|
|Lifting Height||76 1/4" (6' 4 1/4")|
|Overall Width of Columns (Without Motor)||130 1/2" (10' 10 1/2")|
|Overall Width of Columns (With Motor)||142" (11' 10")|
|Overall Length with Approach Ramps||256 1/2" (21' 4 1/2")|
|Overall Length without Approach Ramps||217 3/8" (18' 1 3/8")|
|4-Wheel Alignment Wheelbase||Maximum 172 1/2" (14' 4 1/2")|
Minimum 96" (8')
|2-Wheel Alignment Wheelbase||Maximum 175 1/2" (14' 7 1/2")|
|Length Between Columns||196 3/4" (16' 4 3/4")|
|Runway Length||198 1/4" (16' 6 1/4")|
|Thickness of Runway||8 3/4"|
|Width Between Runways||44" (3' 8") *|
|Width Between Runway Rails||40 3/8" (3' 4 3/8") *|
|Outside Runway to Outside Runway||83 5/8" (6' 11 5/8")*|
|Clearance Under Runways||67 1/2" (5' 7 1/2")|
|Column Dimension||8 1/2" x 5 1/2"|
|Base of Column||12" x 9 1/2"|
|Clearance Between columns||116" (9' 8")|
|Height of Columns||86" (7' 2")|
|Maximum Wheel Base||186" (15' 6")|
|Drive Thru||102" (8' 6")|
|Column Thickness of Steel||3.5mm|
|Platform Thickness of Steel||6mm|
|Cross Beam Thickness of Steel||6mm|
|Motor||2 HP 220V +/- 5% (209-231volts) 1 phase.|
A 30 amp breaker is required.
|Oil Requirement||3-5 Gallons AW32/AW46|
|Ramp Length||50" (4' 2")|
|Length of Slip Plates||67 1/2" (5' 7 1/2")|
*Measurement may vary due to adjustable runway.
|Atlas® 414A Manual||3.6 MB||44||View|
|Squeaks And Tweaks||300 KB||1||View|
|Optional Hose Line Installation Guide||280 KB||1||View|
|Atlas® 414A Cylinder Bleeding Procedure|
(Do this immediately after installation)
|Atlas® Six Terminal Relay Wiring Guide||481 KB||1||View|
|Atlas® Four Terminal Relay Wiring Guide||493 KB||1||View|
- 14,000 lb. Capacity
- Alignment Slip Plates and Turntables
- Turntable Color May Vary
- Automatic Shut-Off Switch
- Lock Ladder Column Design
- Diamond Plate Runway Surface
- Acommodates A Wide Variety Of Wheelbases
- Atlas® Powder Coat Finish
- Air Operated Single Point Lock Release
- Mounting Hardware Included
- 5 Year Structural Warranty, 2 Year Hydraulic Cylinder Warranty, and 1 Year Power Unit Warranty
- Shipping Weight: 3,500 lbs.
