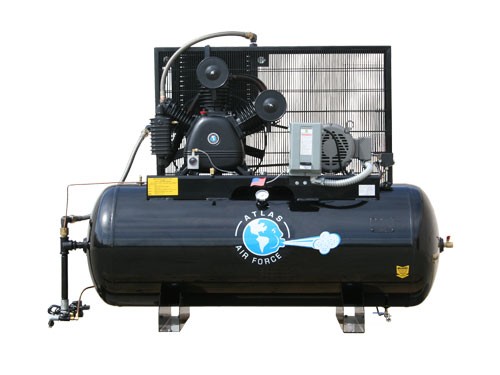

Atlas® Air Force AF10 Plus 10 HP. Two Stage Three Phase 120 Gallon Tank

w/PLUS Package

Product Code: #ATAF10PLUS-3PH
$3,400.00
(0)
$3,400.00
FREIGHT INCLUDED
In-Store Pick Up Discount Available. Please Call For Details.
The Atlas® Air Force AF-10 Plus is a 3-phase 220 volt 10-HP. air compressor designed for the service center that demands a lot of air! The AF-10 Plus has a 120 gallon ASME certified storage tank. The heavy duty extra large three cylinder two stage pump delivers over 32 CFM @ 175 PSI.



This is the perfect compressor for the service center that demands a lot of air and also has 220 volt three (3) phase electricity. Please check to make sure your shop has the needed 220 volt three phase electricity BEFORE you order this compressor. Three phase electricity is very efficient, BUT if your facility does NOT have three phase electricity; it will be VERY EXPENSIVE to install.


Atlas® Air Force AF10 Plus Specifications
Motor Running10 Horsepower
Delivered-CFM 100PSI38
Delivered-CFM 175PSI36.3
Pressure Setting145 lb. - 175 lb.
Tank Capacity120 Gal.
Air Outlet Size½" NPT
Overall DimensionsL 81" x W 31 ½" x H 59"
Shipping Weight969 LBS.
Motor Voltage230VAC 3PH 60HZ 29-26.8 AMPS
Auto Tank Drain Voltage110v
Magnetic StartSquare D
Compressor PumpTHU100 3 Cylinder 2 Stage
Shipping Dimensions84 ½" x 61" x 41"
Size:Pages:
Atlas® Air Force Manual2 MB11Download
Atlas® Air Force AF10 Plus Parts List783 KB7Download
