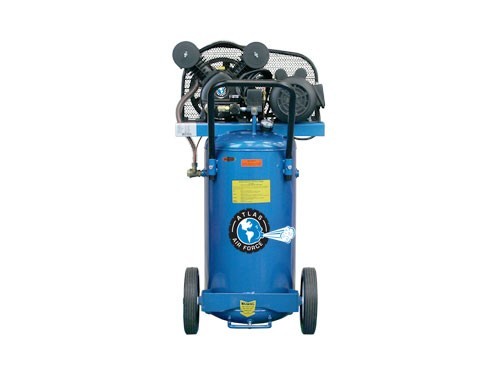

Atlas® Air Force AF2 Portable 20 Gallon Air Compressor

Product Code: #ATAF2
$845.00
(0)
$845.00
FREIGHT INCLUDED
In-Store Pick Up Discount Available. Please Call For Details.
These dynamite portable 110 volt air compressors deliver enough air for the average two man motorcycle shop. These are belt driven reciprocating air compressors with a rebuildable cast iron twin cylinder single stage pumps. The Atlas® AF1 (horizontal tank) and the AF2 (vertical tank) will, (on a full 20 gallon tank of air), mount and demount (using an Atlas® TC 221 tire changer) up to four tires before the compressor "kicks on".



The Atlas® AF1 and Atlas® AF2 will operate the Atlas® Cycle Lift and Atlas® Hi-Rise 1500 motorcycle lifts. Their no-load recovery time (from 95 LB. to 135. LB.) is about 60 seconds.



The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressor is built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment sold at Greg Smith Equipment Sales.


Atlas® Air Force AF2 Specifications
Motor Peak5.0 Horsepower
Motor Running2.0 Horsepower
Delivered-CFM 40PSI7.1
Delivered-CFM 90PSI5.5
Pressure Setting135
Air Outlet Size½" NPT
Tank Capacity20 Gal.
Overall DimensionsL 18" x W 22 1/2" x H 43"
Power110V
Shipping Weight250 LBS.
Motor Voltage115VAC 1PH 60Hz 15AMPS
Compressor PumpPK50 2 CYLINDER SINGLE STAGE
Atlas® Air Force Operator's Manual
Size:Pages:
Atlas® Air Force Manual2 MB11Download
  • Quiet Operation
  • Quick Coupler
  • Heavy Duty Metal Belt Guard
  • Shipping Weight: 250 lbs
