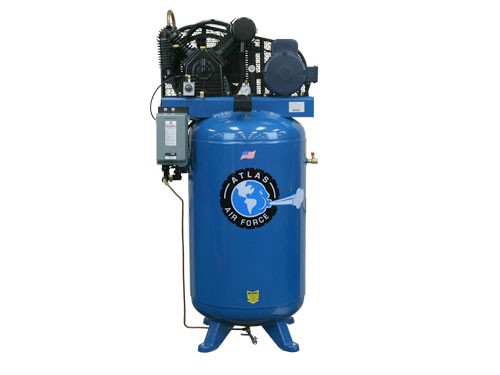

Atlas® Air Force AF8Plus Two Stage 5 HP Commercial Grade 220V Single Phase 80 Gallon Air Compressor

Product Code: #ATAF8Plus
In-Store Pick Up Discount Available. Restrictions Apply. Please Call For Details.
The “PLUS” features for our commercial grade two stage air compressors includes an automatic low oil monitor, automatic tank drain, and air cooled aftercooler. These three feature help to extend the life of your Atlas® air compressor while also delivering “better air”.

This is the perfect compressor for the 3-4 man auto shop...or for the one man shop that wants to be prepared for future growth. The Atlas® AF8 is what we recommend for a small business that depends on their air compressor to deliver flawlessly every business day.

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force vertical compressor is built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment sold at Greg Smith Equipment Sales.

Atlas® Air Force AF8 Plus Specifications
Motor Running5.0 Horsepower
Delivered-CFM 100PSI19.6
Delivered-CFM 175PSI18.4
Pressure Setting145 lb. - 175 lb.
Tank Capacity80 Gal.
Air Outlet Size½" NPT
Overall DimensionsL 31" x W 24" x H 69"
Shipping Weight589 LBS.
Motor Voltage230VAC 1PH 60Hz 23AMPS
Auto Tank Drain Voltage110v
Compressor PumpCT51 2 Cylinder 2 stage
Atlas® Air Force Manual2 MB11Download
Atlas® Air Force AF8 Plus Parts List744 KB7Download
