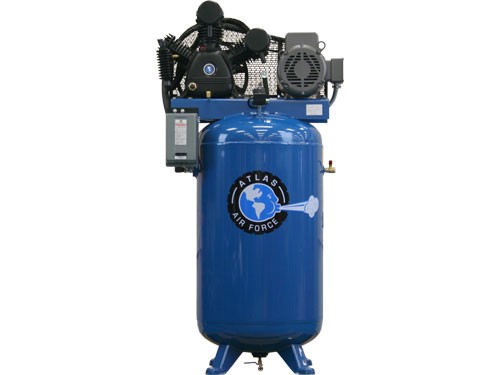

Atlas® Air Force AF9/17 Two Stage Single Phase 80 Gallon 1725 RPM Motor Air Compressor
The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressor is built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment sold at Greg Smith Equipment Sales
Atlas® Air Force AF9/17 Specifications | |
Motor Running | 7.5 Horsepower |
Delivered-CFM 100PSI | 24.8 |
Delivered-CFM 175PSI | 22.8 |
Pressure Setting | 145 - 175 |
Tank Capacity | 80 Gal. |
Air Outlet Size | ½" NPT |
Overall Dimensions | L 36 1/2" x W 24" x H 71" |
Shipping Weight | 627 LBS. |
Motor Voltage | 230VAC 1PH 60Hz 34-32AMPS |
Motor RPM | 1725 RPM |
Compressor Pump | TK50 3 Cylinder 2 Stage |
- Free set of Vibro-Isolation pads
- 1725 RPM Motor
- Extremely Quiet
- Mounted Magnetic Starter
- Hands free tank drain extension
- Finned tank inlet tube to reduce temperature of compressor air
- Heavy Duty Metal Belt Guard
- Compressor oil drain extension tube
- Shipping Dimensions: 28 ¼" x 40" x 74"
- Shipping Weight: 627 lbs.
