Atlas® Lawn Mower Adapter

Product Code: #ATLMA
$1,395.00
(0)
$1,395.00
FREIGHT INCLUDED
In-Store Pick Up Discount Available. Please Call For Details.
The Atlas® LMA (lawn mower adapter) will transform most two post above ground lifts into an easy to use lawn mower lift, golf car lift, snowmobile lift, ATV lift, or a small sports car lift.



The Atlas® LMA adapts easily to most two post above ground lifts that are equipped with a symmetric arm design. The LMA is adjustable in width to accommodate the many different arm configurations found on two post lifts. The Atlas® LMA can be used in an infinite amount of wheel base configurations (between 32" and 90") to allow the operator great flexibility in lifting different pieces of lawn service equipment with varying wheelbases.



Most of the specialty lawn mower lifts and golf cart lifts are just variations of the economical automobile lift. Golf course maintenance equipment distributors are demanding artificially high prices for specialty above ground lifts that are just subtle adaptations of the very affordable two post above ground car lifts.



When properly installed, the Atlas® LMA can transform most two post above ground lifts into an economical four wheel support lift that will accommodate wheel bases from 32" to 90". The Atlas® LMA plates can be positioned ONLY on two post lift arms that offer symmetric arm configuration.



Please read the following before buying or using the Atlas® LMA:



The Atlas® LMA is designed to work well with most two post above ground lifts with symmetric arms. There are many factors that will determine the SAFE weight capacity of the Atlas® LMA on YOUR lift. Greg Smith Equipment Sales recommends the following LMA guidelines for the SAFE lifting of all specialty vehicles or lawn service equipment.



Many above ground two post lifts have been OVER RATED by certain lift distributor. Your 9,000 LB or 10,000 LB two post may be (in reality) only an 8,000 LB. two post lift.



For the purpose of illustration, let us assume that you have an REAL 8,000 LB two post lift.



This 8,000 LB capacity translates into an important fact about above ground two post lifts:

An 8,000 LB two post lift has four lift arms that are capable of lifting (and safely supporting) 2,000 LB. each. If you are lifting an 8,000 LB. vehicle on an 8,000 LB. lift, then the weight of the vehicle needs to be evenly distributed on each of the four lifting points.



This same principle is applied when using the Atlas® LMA as an accessory on your lift.

You must distribute the weight as evenly as possible.



First, you must consider the weight of the LMA (600 LB) and deduct the 600 LB. from the lifting capacity of your lift. Your 8,000 LB. lift (with a properly positioned LMA) has a new lifting capacity of 7400 LB.



The closer the LMA plate is positioned to the vertical columns, the greater the lifting capacity of the LMA. As the LMA adapter plates are moved farther apart (toward the lift pads of the lift), the lifting capacity of the LMA is reduced.



We recommend that the lift operator DEDUCT 3,000 LB. lifting capacity of the above ground lift when the two LMA plates are spaced at the furthest wheelbase position (90"). When the LMA plates are positioned at the closest wheel base position (32"), then the weight capacity of the above ground lift with the attached LMA should be DECREASED by 2,000 LB.



If you are using an 8,000 LB. two post lift, and you have the wheelbase dimensions set at 32", then the NEW lifting capacity of the lift would be 6,000 LB. If you position the LMA plates so that the wheelbase is 90", then the NEW lifting capacity would be 5,000 LB.



If you are lifting a mower (or other vehicle) that is extremely heavy on one end, then the operator should position the LMA plate supporting the "heavy" end closer to the vertical column and extend the opposite LMA plate (supporting the "lighter" end) further out on the lift arm to accommodate the necessary wheelbase.
Lawn Mower Adapter (LMA) Specifications
CapacityUp To 5,000 lbs. *
Adjusts In Width8' - 11'
Wheel Base32" - 90" *
Wheel Well Width12"
Thickness Of Steel3/16"
Shipping Weight600 lbs.
Will Fit Over Symmetric Lift Arms With Width Up To 5-1/2"

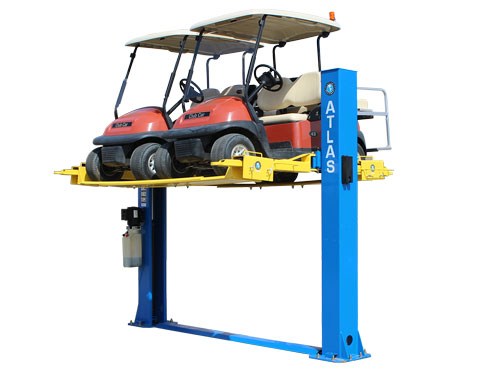

LMA Consists Of Two Wheel Platforms. Direct lift HR800 Shown Is Not Included.
* MAY VARY DEPENDING ON LIFT AND WEIGHT DISTRIBUTION.

* THE LONGER THE WHEEL BASE OF THE VEHICLE TO BE LIFTED;

* THE LOWER THE LIFTING CAPACITY OF THE LMA.
* LMA SHOWN ON DIRECT LIFT HR8000. MAY REQUIRE BLOCKS AND/OR SHIMS AT

* DIFFERENT POSITIONS ON LIFT ARMS TO KEEP WHEEL PLATFORMS STABLE AND LEVEL.
 Size:Pages:
Atlas® Lawn Mower Adapter Assembly Guide1.5 MB15Download
