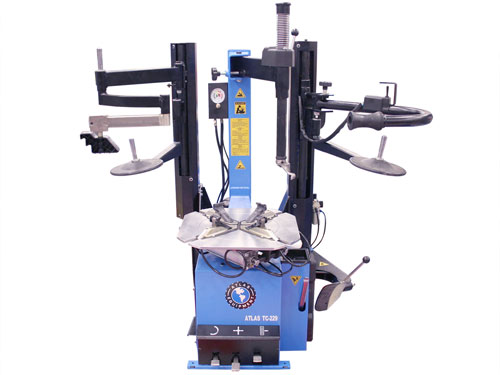

Atlas® TC229DAA Dual Assist Arm Wheel Clamp Tire Changer w/Bead Blaster

Product Code: #Atlas TC229DAA Tire Changer
$2,745.00
(0)
$2,745.00
FREIGHT INCLUDED
In-Store Pick Up Discount Available. Please Call For Details.
The Atlas® TC229DAA wheel clamp tire changer is the Atlas® TC229 wheel clamp tire changer that has been equipped with the pneumatic Atlas® LH assist arm plus the Atlas® RF assist arm that includes a bead roller and second bead lifting/pressing disc. The addition of the Dual Arm Assembly (DAA) to the Atlas® TC229 makes the Atlas® TC229DAA one of the most powerful wheel clamp tire changers in the marketplace.



The Atlas® TC229DAA wheel clamp tire changer is the perfect tire changer for the small automotive garage or ATV/MC dealer. The Atlas® TC229DAA has the same clamping and tire changing capabilities as the Atlas® TC 221 wheel clamp tire changer, but has the added bead blaster system to help inflate stiff sidewall tires or other "hard to inflate" tires. If you are going to be changing larger pickup truck (1 ton), large SUV wheels, or agricultural tires (either now or in the future), you may want to consider the Atlas® Atlas® 289 wheel clamp tire changer. Ask your tire changer professional at Greg Smith Equipment for advice on which tire changer will do the best job for you at the price you want to pay!









Atlas® TC229DAA Specifications
RimsSteel, Aluminum, Alloy
External Locking Rim Dimension9 3/4" - 21 5/8"

10 3/4" - 22 1/2"

11 5/8" - 23 1/4"
Internal Locking Rim Dimension11 5/8" - 23 1/4"

12 5/8" - 24 1/4"

13 1/2" - 25 1/4"
External Locking Rim Dimension

(With Flip Adapters

In The ATV Configuration)
Position 1) 2 7/8" - 14 3/4"

Position 2) 3 3/4" - 15 5/8"

Position 3) 4 5/8" - 16 5/8"
External Locking Rim Dimension

(With Flip Adapters In The Motorcycle Configuration)
Position 1) 12 5/8" - 24 1/2"

Position 2) 13 5/8" - 25 1/2"

Position 3) 14 1/2" - 26 3/8"
Bead BlasterYes
Maximum tire diameter39"
Operating voltage110V 1Ph
Maximum wheel width (Bead Breaker)13"
Air pressure90 - 110 psi
Maximum Inlet Pressure not to exceed140 PSI*
Shipping weight3 Crates: 500 lbs. , 169 lbs., &

154 lbs.
Turntable Rotating Torque885 ft/lbs.
Wheel clamping4 jaws: internal/external
Bead breakerPneumatic, 5,500 LB. force
Oiler, filter, regulatorIncluded
Soap reservoirIncluded
Warranty1 yr. limited
4 Black plastic rim protectorsIncluded
*Inlet pressure is the amount of air pressure that your air compressor is supplying.
Size:Pages:
Atlas® TC221 / TC229 Manual5.6 MB53View
Atlas® TC229 Parts List808 KB28View
Atlas® Left Hand (LH) Assist Arm Manual2 MB18View
Atlas® Left (LH) Assist Arm Assembly Guide886 KB9View
Atlas® Right Hand (RH) Assist Arm Manual1.8 MB17View
Atlas® Right (RH) Assist Arm for Swing Arm Tire Changers Assembly Guide1.5 MB15View
Filling And Adjustment Of The Filter Regulator Lubricator371 KB5View
  • Tire Inflator
  • 3 Positions For Clamping Jaws
  • Oiler, Filter, Regulator included
  • 90-110 Psi
  • Beadblaster
  • 110v
  • Dual Assist Arm Assembly
  • Inner Clamp: 11 5/8” – 25 1/4”
  • Outer Clamp: 9 3/4”- 23 1/4”
  • Max Tire Diameter: 39”
  • Max Wheel Width: 13”
