Atlas® TC289LH Tire Changer

Product Code: #Atlas TC289LH Tire Changer
$2,745.00
(0)
$2,745.00
FREIGHT INCLUDED
In-Store Pick Up Discount Available. Please Call For Details.

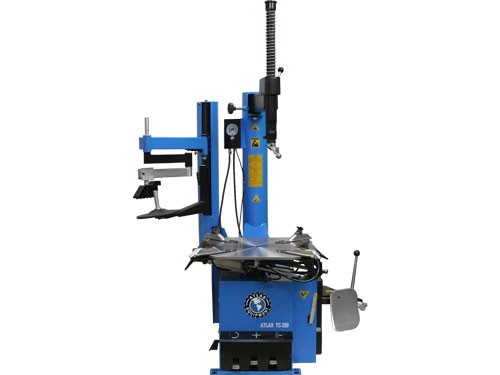

The Atlas® TC289LH wheel clamp tire changer is the Atlas® TC289 wheel clamp tire changer that has been equipped with the pneumatic Atlas® LH assist arm. The addition of the Atlas® LH assist arm to the Atlas® 289 makes the Atlas® TC289LH one of the most powerful wheel clamp tire changers in the marketplace.



The Atlas® TC289LH is the perfect wheel clamp tire changer for most general automotive service departments and medium to large sized tire stores. The Atlas® TC289LH wheel clamp tire changer is capable of changing the majority of the expensive alloy and custom wheels found on today's vehicles.



The powerful adjustable bead breaker located on the side of the tire changer is designed to break even the most stubborn and rusted beads without damage to the rim. The bead breaker can be adjusted out to over 18 inches from the tire changer.



The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim.



The Atlas® TC289LH comes standard with a powerful bead blaster and inflator hose with gauge.



Greg Smith Equipment stocks a complete inventory of parts for the equipment we sell.

Click here to view photos of our parts department.









Atlas® TC289LH Specifications
RimsSteel, Aluminum, Alloy
External Clamping RangePosition 1) 11 7/8" - 26"

Position 2) 12 7/8" - 27"

Position 3) 13 3/4" - 28"
Internal Clamping RangePosition 1) 13 7/8" - 27 7/8"

Position 2) 14 5/8" - 28 7/8"

Position 3) 15 5/8" - 29 7/8"
External Locking Rim Dimension

(With Flip Adapters In The ATV Configuration)
Position 1) 5" - 19 1/8"

Position 2) 5 7/8" - 20 1/8"

Position 3) 6 7/8" - 21 1/8"
External Locking Rim Dimension

(With Flip Adapters In The Motorcycle Configuration)

Position 1) 15" - 29 1/8"

Position 2) 15 7/8" - 30"

Position 3) 16 7/8" - 31"
Bead BlasterYes
Maximum tire diameter40"
Operating voltage110V 1Ph
Maximum wheel width (Bead Breaker)Position 1) 14 ¾"

Position 2) 18 ½
Air pressure90 - 110 psi
Maximum Inlet Pressure not to exceed170 PSI*
Shipping weight2 Crates: 618 LBS. & 154 LBS.
Turntable Rotating Torque885 ft/lbs.
Wheel clamping4 jaws: internal/external
Bead breakerPneumatic, 5,500 LB. force
Oiler, filter, regulatorIncluded
Soap reservoirIncluded
Warranty1 yr. limited
4 Black plastic rim protectorsIncluded
Size:Pages:
Atlas® TC289 Manual3.1 MB32View
Atlas® TC289 Parts List749 KB26View
Atlas® Left Hand (LH) Assist Arm Manual2 MB18View
Filling And Adjustment Of The Filter Regulator Lubricator240 KB6View
